1196227
Official DistributorSKU
PHX1196227
MPN
FL SWITCH 1608
Series FL-SWITCH

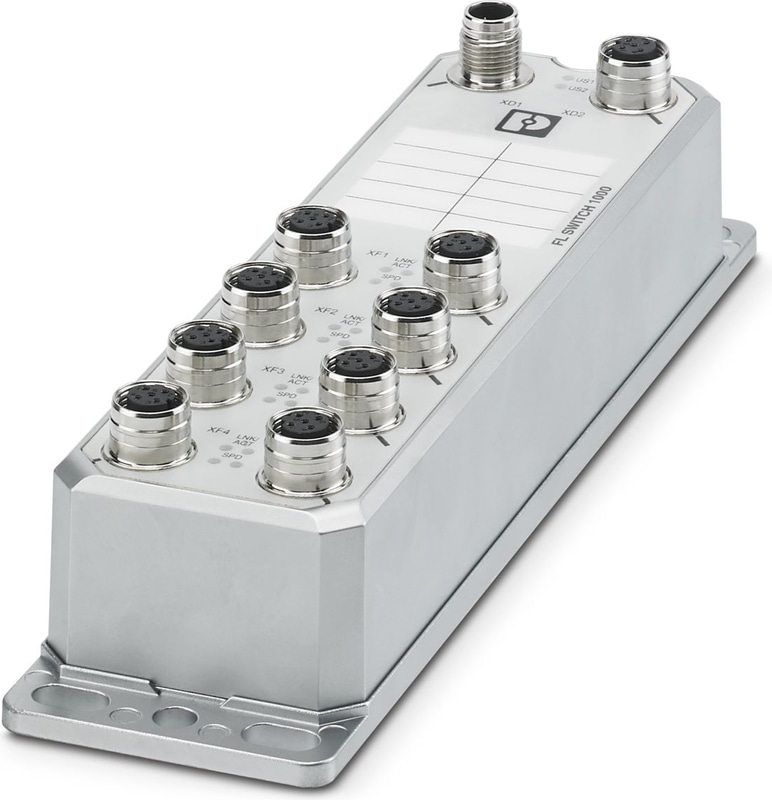

FL SWITCH 1608 - Industrial Ethernet Switch
Unmanaged Switch 1000, 8 M12 ports 10/100 Mbps, degree of protection: IP65/IP66/IP67, Extended temperature range
- QoS-prioritized (Quality of Service) messages
- Local diagnostic indicators with LEDs
- Enhanced traffic prioritization for automation protocols
- PROFINET PTCP filter for reliable communication on PROFINET networks
- PROFINET Conformance Class A for real-time data exchange
- Auto negotiation and autocrossing detection simplifies installation and setup
FL-SWITCH
Phoenix Contact FL SWITCH Series - Industrial Ethernet switches for automation and control systems.
Unmanaged Switches (plug-and-play):
- 1000/1100 Series: Compact design, 10/100 Mbps (1000) or up to 1 Gbps (1100), supports PROFINET/EtherNet/IP
- 1600/1700 Series: Environmental resistance for harsh field conditions
- 1800/1900 Series: High port density (up to 24 ports) for data centers/control rooms
Managed Switches (advanced features):
- 2000 Series: Cost-effective, Fast/Gigabit Ethernet, redundancy (RSTP/MRP), multicast filtering
- 3000/4000 Series: Advanced diagnostics and security, 15ms failover, up to 64 VLANs, IEEE 802.1x authentication, PoE options (60W per port)
Designed for reliable industrial network connectivity with appropriate features for different application requirements.
Technical Specifications
Dimensions
| Width | 60 mm |
| Height | 226 mm |
| Depth | 46 mm |
Material specifications
| Housing Material | Zinc die-cast |
Mounting
| Mounting Type | Wall mounting |
Ethernet
| Connection Method | M12 connectors, D-coded |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status |
| No. of channels | 8 (M12 ports) |
Product properties
| Product family | Unmanaged Switch 1000 |
| Type | Stand-Alone |
| MTTF | 79.2 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
| MTTF | 845.5 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 610.2 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| Special Properties | Extended temperature range |
Switch functions
| Basic Functions | Store-and-forward switch, complies with IEEE 802.3 |
| MAC address table | 4k |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
| Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u) |
| Additional functions | Quality of Service (QoS) prioritization (IEEE 802.1p) |
| Additional functions | Energy-efficient Ethernet (IEEE 802.3az) |
| Additional functions | 10Base-T (IEEE 802.3) |
Security functions
| Basic Functions | Store-and-forward switch, complies with IEEE 802.3 |
Electrical properties
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| Local diagnostics | LINK Link status Green LED |
| Transmission medium | Copper |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 9 V DC ... 57 V DC |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Max. current consumption | 143 mA (9 V DC) |
| Typical current consumption | 58 mA |
Connection technology
| Connection name | Power supply |
Power supply
| Connection Method | M12 connector (A-coded) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Shock (operation) | 30g (EN 60068-2-27) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
| Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Standards and Regulations
| Free from substances that could impair the application of coating | Yes |
EMC data
| Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-4-5 (surge) Criterion B |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-6-4 (interference) Class A |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A |
| Noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
Functionality
| Basic Functions | Store-and-forward switch, complies with IEEE 802.3 |
Signaling
| Status display | LEDs: US1, US2 (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
