2701883
SKU
PHX2701883
MPN
FL SWITCH 1708 M12 POE
Weight
2.588 kg
This product is Not Cancellable/Not Returnable
Series FL-SWITCH

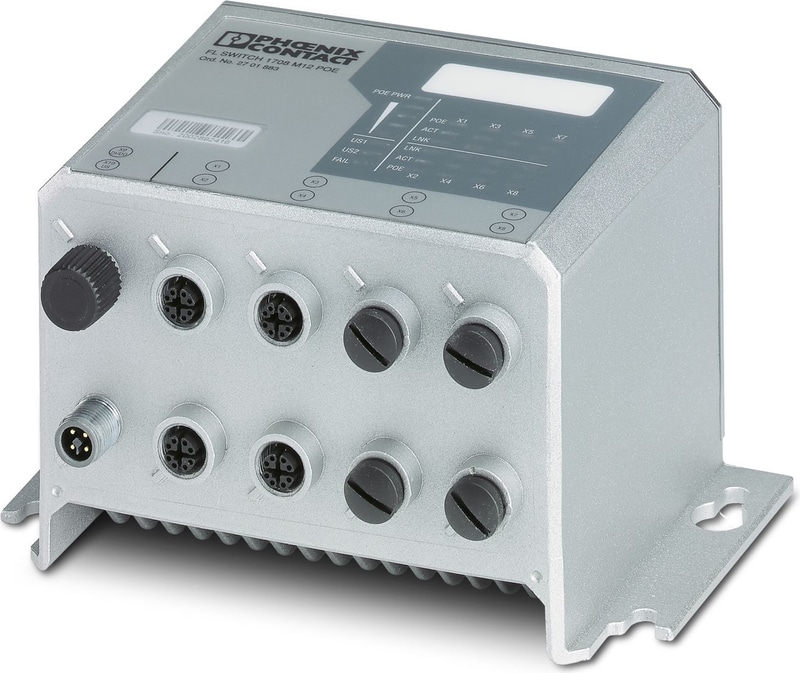

FL SWITCH 1708 M12 POE - Industrial Ethernet Switch
PoE+ Ethernet switch, 8 Ethernet ports in M12 format, automatic detection of the data transmission speed of 10/100/1000 Mbps, jumbo frames up to 9600 bytes, coupling of network segments with different transmission speeds, autocrossing function, degree of protection IP67
- Gigabit support
- Robust IP67 housing
- Easy panel mounting
- PoE+ supply to 8 ports
- Jumbo frames with up to 9720 bytes
- Metal housing
FL-SWITCH
The Phoenix Contact FL SWITCH Series encompasses a comprehensive range of industrial Ethernet switches designed to meet diverse networking requirements in automation and control systems. This series includes both unmanaged and managed switches, offering various configurations to ensure reliable and efficient data communication in industrial environments.
Unmanaged Switches:
The unmanaged switches in the FL SWITCH Series are designed for straightforward integration into networks, providing plug-and-play functionality without the need for configuration. They are suitable for standard applications where basic connectivity is sufficient.
FL SWITCH 1000 and 1100 Series: These switches feature compact designs and flexible installation options, with transmission speeds of 10/100 Mbps for the 1000 series and up to 1,000 Mbps for the 1100 series. They support traffic prioritization for automation protocols such as PROFINET and EtherNet/IP™, enhancing network stability and system availability.
FL SWITCH 1600 and 1700 Series: Built to withstand harsh environmental conditions, these switches are particularly resistant to environmental influences, making them ideal for field installation. They offer robust performance in demanding industrial settings.
FL SWITCH 1800 and 1900 Series: Designed for use in data centers and control rooms, these switches provide a high port density, enabling the connection of up to 24 network devices. They are suitable for applications requiring extensive network connectivity.
Managed Switches:
For applications requiring advanced network management and security features, the FL SWITCH Series offers managed switches with a range of functionalities.
2000 Series Managed Switches: These switches provide a cost-effective range of standard functions and are versatile for various automation applications. They support Fast Ethernet and Gigabit Ethernet, redundancy functions like RSTP and MRP for failsafe networks, and multicast filtering to reduce data load. They also offer easy and flexible configuration options.
3000 and 4000 Series Managed Switches: Designed for demanding applications, these switches combine comprehensive diagnostic, performance, and security functions. They offer extended ring redundancy with switch-over times of just 15 ms in the event of an error, support for up to 64 VLANs, multicast filtering, trunking, and advanced security features such as user accounts, port security, and IEEE 802.1x RADIUS authentication. PoE versions are also available, providing up to 60 W per port.
The FL SWITCH Series is engineered to provide reliable and efficient network connectivity solutions tailored to the specific needs of industrial environments, ensuring seamless communication and enhanced system performance.
Technical Specifications
Dimensions
Width | 176 mm |
Height | 112 mm |
Depth | 100 mm |
Drill hole spacing | 155 mm |
Notes
General | NOTE: Meet noise immunity requirementsConnect FE using a mounting screw when mounting on a conductive surface. When mounting on a non-conductive surface, FE is connected using the mounting screw via a cable lug. |
Material specifications
Color | anthracite |
Housing Material | Zinc die-cast, surface bronzed and nickel-plated |
Housing surface material | coated |
Mounting
Mounting Type | Wall mounting |
Ethernet (PoE)
Number of interfaces | 8 |
Connection Method | M12 connector, 8-pos. |
Note on the connection method | X-coded |
Transmission Speed | 10/100/1000 Mbps |
Transmission physics | Copper |
Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status |
No. of channels | 8 (RJ45 POE ports) |
Signal contact
Number of interfaces | 1 (Annunciator relay) |
Connection Method | M12 connector (A-coded) |
Product properties
Product family | Unmanaged PoE Switches 1000 |
Type | Stand-Alone |
MTTF | 208.85 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
MTTF | 93.43 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
MTTF | 9.98 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) |
Insulation characteristics
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Switch functions
Basic Functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes |
Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 100 mA (24 V DC) |
PROFINET conformance class | Conformance-Class A |
Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and PoE Status), and PoE performance |
Additional functions | Autonegotiation |
Security functions
Basic Functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes |
Electrical properties
Local diagnostics | US Supply voltage US Green LED |
Maximum power dissipation for nominal condition | 7.2 W |
Test section | Between the Ethernet ports 1500 V AC 1 min. |
Test section | 24 V supply (US) / FE 500 V DC 1 min. |
Transmission medium | Copper |
Supply
Supply voltage (DC) | 24 V DC (M12 connector) |
Supply Voltage Range | 18.7 V DC ... 30.5 V DC |
Power supply connection | via M12 connector, T-coded |
Residual ripple | 3.6 VPP |
Max. current consumption | 12 A (Maximum, nominal load) |
Typical current consumption | 300 mA (at US = 24 V DC) |
Function
Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 100 mA (24 V DC) |
Supply: Module electronics
Supply Voltage Range | 18.7 V DC ... 30.5 V DC (including ripple) |
Ambient conditions
Degree of Protection | IP65 |
Degree of Protection | IP66 |
Degree of Protection | IP67 |
Ambient Temperature (Operation) | -40 °C ... 70 °C (non-condensing) |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 95 % |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Standards and Regulations
Free from substances that could impair the application of coating | Yes |
EMC data
Conformance with EMC directives | EN 61000-4-2 EN 61000-4-2 (ESD) Criterion A |
Conformance with EMC directives | EN 61000-4-3 (electromagnetic fields) EN 61000-4-3 (electromagnetic fields) Criterion A |
Conformance with EMC directives | EN 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A |
Conformance with EMC directives | EN 61000-4-4 EN 61000-4-4 Criterion A |
Conformance with EMC directives | EN 61000-4-5 EN 61000-4-5 (surge) Criterion A |
Conformance with EMC directives | EN 60950-1 |
Noise immunity | EN 61000-4-2 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Noise emission | EN 55022 / Class B |
Functionality
Basic Functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes |
Signaling
Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and PoE Status), and PoE performance |
Accessories
- NBC-M12MSX/ 5,0-94F/M12MSX - Network cable, Ethernet CAT6A (10 Gbps), CC-Link IE CAT6A (10 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: X / IP67, on Plug straight M12, coding: X / IP67, cable length: 5 m
- NBC-M12MSX/ 1,0-94F/R4AC - Network cable, Ethernet CAT6A (10 Gbps), CC-Link IE CAT6A (10 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: X / IP67, on Plug straight RJ45, coding: X / IP20, cable length: 1 m
- NBC-M12MSX/ 2,0-94F/R4AC - Network cable, Ethernet CAT6A (10 Gbps), CC-Link IE CAT6A (10 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: X / IP67, on Plug straight RJ45 / IP20, cable length: 2 m
- NBC-M12MSX/ 5,0-94F/R4AC - Network cable, Ethernet CAT6A (10 Gbps), CC-Link IE CAT6A (10 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: X / IP67, on Plug straight RJ45 / IP20, cable length: 5 m
