Official DistributorBy ABB
SKU
MPN
1SAP540710R0001

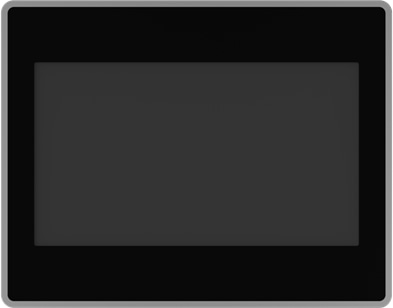

CP6407: CP600 Control panel. 7" TFT touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser. PB610 applications.
Technical Specifications
Dimensions
| Product Net Weight | 0.92 kg |
| Product Net Depth / Length | 42 mm |
| Product Net Height | 147 mm |
| Product Net Width | 187 mm |
| Gross Weight | 1.425 kg |
| Package Level 1 Depth / Length | 280 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Width | 210 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | 7" TFT touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser |
| Screen Size | 7 in |
| Screen Color | 65536 Colors |
| Screen resolution | 800 x 480 pixel |
| Display type | TFT, resistive touch |
| Number of Hardware Interfaces | Industrial Ethernet 2 |
| Number of Hardware Interfaces | Other 1 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 2 |
| Number of Hardware Interfaces | Wireless 0 |
| Number of Hardware Interfaces | PROFINET 0 |
| Memory Size | 150000 kB |
| Security | 50 |
| Input Voltage Type | DC |
| Degree of Protection | Front IP66 |
| Supply Voltage | 18 … 32 V DC |
| Built-In Depth (t2) | 40 mm |
| Ambient Air Temperature | Operation -20 … +60 °C |
Additional Information
| Product Main Type | CP6407 |
