Official DistributorBy ABB
SKU
MPN
1SAP520100R0001

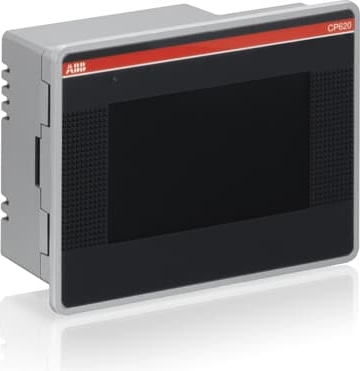

CP620 Control Panel 4.3" TFT touch screen, 64 K colors, 480 x 272 pixel, PB610 runtime license
Technical Specifications
Additional Information
| ABB Type Designation | CP620 |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Ambient Air Temperature | Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication interface | 2x Ethernet 100 MBit |
| Communication interface | 1x RS232/422/485 |
| Communication interface | 1x USB 2.0 Host |
| Communication interface | 1x SD card slot |
| Communication interface | 1x Expansion slot |
| Country of Origin | Italy (IT) |
| Country of Origin | Germany (DE) |
| Country of Origin | Finland (FI) |
| Customs tariff number | 85371091 |
| Declaration of Conformity - C-Tick | 1SAA960002-3301 |
| Declaration of Conformity - KCC | 1SAA960002-4801 |
| Degree of Protection | acc. to IEC 60529 Front IP66 |
| Degree of Protection | acc. to IEC 60529 Housing IP20 |
| EAN | 4016779864862 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| Gross Weight | 1.3 kg |
| Housing Material | Front side: Zamak |
| Housing Material | Reverse side: Zamak |
| Invoice Description | CP620 Control Panel 4.3" TFT touch scree |
| Made to Order | No |
| Maximum Order Quantity | 0 piece |
| Memory Size User Data | 128 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
Additional Information
| Package Level 1 Depth / Length | 260 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 190 mm |
| Power Consumption (@Pcons) | 9.6 W |
| Power Supply | 24 (18 ... 30) V DC |
| Product Main Type | CP620 |
| Product Net Depth / Length | 56 mm |
| Product Net Height | 107 mm |
| Product Net Weight | 0.88 kg |
| Product Net Width | 147 mm |
| Product type | PLC-CP600 |
| Programming Software | PB610 Panel Builder 600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| SCIP | c45a2914-ae9d-4a60-bc87-f7ee9fd0ba0b Germany (DE) |
| Screen Color | 64k colors |
| Screen resolution | 480 x 272 pixel |
| Screen Size | 16:9 wide screen 4.3 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Service life | 40000 hour |
| Short Description | CP620 Control Panel 4.3" TFT touch screen |
| Stocked At (Warehouses) | Menden, Germany |
| Stocked At (Warehouses) | Singapore, Singapore |
| Stocked At (Warehouses) | Hangzhou, China |
| Stocked At (Warehouses) | Bairro Santo Antonio, Brazil |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| EPLAN Data Portal Status | Available but Not EDS Compliant |
Why Proax for ABB CP620?
Proax is an authorized distributor of ABB CP620 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
