Official DistributorBy ABB
SKU
MPN
1SAP541010R0001

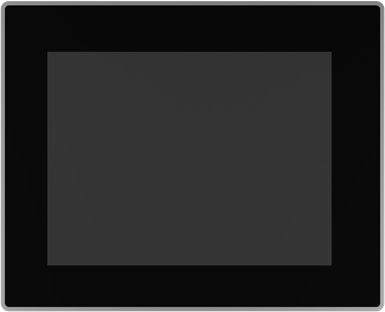

CP6410: CP600 Control panel. 10.4" TFT touch screen, 64 K colors, 800 x 600 pixel, Chromium Browser. PB610 applications.
Technical Specifications
Dimensions
| Product Net Weight | 1.82 kg |
| Product Net Depth / Length | 42 mm |
| Product Net Height | 232 mm |
| Product Net Width | 287 mm |
| Gross Weight | 2 kg |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Width | 270 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | 10.4" TFT touch screen, 64 K colors, 800 x 600 pixel, Chromium Browser |
| Screen Size | 10.4 in |
| Screen Color | 65536 Colors |
| Screen resolution | 800 x 600 pixel |
| Display type | TFT, resistive touch |
| Number of Hardware Interfaces | Industrial Ethernet 2 |
| Number of Hardware Interfaces | Other 1 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 2 |
| Number of Hardware Interfaces | Wireless 0 |
| Number of Hardware Interfaces | PROFINET 0 |
| Memory Size | 150000 kB |
| Security | 50 |
| Input Voltage Type | DC |
| Degree of Protection | Front IP66 |
| Supply Voltage | 18 … 32 V DC |
| Built-In Depth (t2) | 40 mm |
| Ambient Air Temperature | Operation -20 … +60 °C |
Additional Information
| Product Main Type | CP6410 |
Why Proax for ABB CP6410?
Proax is an authorized distributor of ABB CP6410 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
