Official DistributorBy ABB
SKU
MPN
1SAP550100R0001

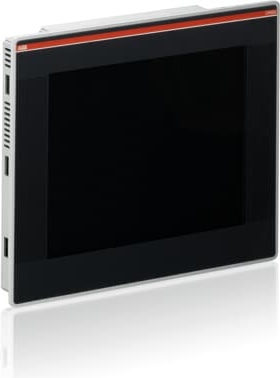

CP650 Control Panel 10.4" TFT touch screen, 64 K colors, 800 x 600 pixel, PB610 runtime license
Technical Specifications
Additional Information
| ABB Type Designation | CP650 |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Ambient Air Temperature | Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication interface | 1x Ethernet10/100 MBit |
| Communication interface | 2x RS232/422/485 |
| Communication interface | 1x USB 2.0 Host |
| Communication interface | 1x Aux port |
| Country of Origin | Italy (IT) |
| Customs tariff number | 85371091 |
| Declaration of Conformity - C-Tick | 1SAA960002-3301 |
| Declaration of Conformity - KCC | 1SAA960002-4801 |
| Degree of Protection | acc. to IEC 60529 Front IP66 |
| Degree of Protection | acc. to IEC 60529 Housing IP20 |
| EAN | 4016779864923 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| Gross Weight | 2.65 kg |
| Housing Material | Front side: Aluminium |
| Housing Material | Reverse side: Aluminium |
| Invoice Description | CP650 Control Panel 10.4" TFT touch scre |
| Made to Order | No |
| Memory Size User Data | 128 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Height | 130 mm |
Additional Information
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 280 mm |
| Power Consumption (@Pcons) | 24 W |
| Power Supply | 24 (18 ... 30) V DC |
| Product Main Type | CP650 |
| Product Net Depth / Length | 60 mm |
| Product Net Height | 232 mm |
| Product Net Weight | 2.1 kg |
| Product Net Width | 287 mm |
| Product type | PLC-CP600 |
| Programming Software | PB610 Panel Builder 600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| Replacement Product ID (NEW) | 1SAP551100R0001 |
| Screen Color | 64k colors |
| Screen resolution | 800 x 600 pixel |
| Screen Size | 4:3 screen 10.4 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Serial Port 2 Type | RS232/RS422/RS485 |
| Service life | 50000 hour |
| Short Description | CP650 Control Panel 10.4" TFT touch screen |
| Stocked At (Warehouses) | Menden, Germany |
| Stocked At (Warehouses) | Hangzhou, China |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| EPLAN Data Portal Status | Available but Not EDS Compliant |
