ABB CP6621
ABBOfficial Distributor

By ABB

SKU
MPN
1SAP562110R0001
Weight
5.8 kg

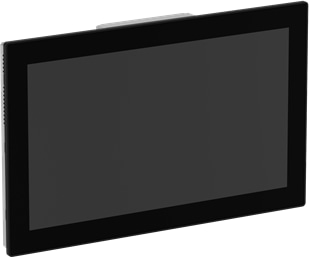

CP6621: CP600-Pro Control panel. 21.5" TFT multi-touch screen, 16 M colors, 1920 x 1080 pixel, Chromium Browser. PB610 applications.
Technical Specifications

Dimensions

Product Net Weight5.8 kg
Product Net Depth / Length65 mm
Product Net Height347 mm
Product Net Width552 mm
Gross Weight6 kg
Package Level 1 Depth / Length655 mm
Package Level 1 Height145 mm
Package Level 1 Width450 mm
Package Level 1 Units1 carton

Technical

Function21.5" TFT multi-touch screen, 16 M colors, 1920 x 1080 pixel, Chromium Browser
Screen Size21.5 in
Screen Color16000000 Colors
Screen resolution1920 x 1080 pixel
Display typeTFT, capacitive multitouch
Number of Hardware InterfacesIndustrial Ethernet 3
Number of Hardware InterfacesOther 1
Number of Hardware InterfacesParallel 0
Number of Hardware InterfacesRS-232 0
Number of Hardware InterfacesRS-422 0
Number of Hardware InterfacesRS-485 0
Number of Hardware InterfacesSerial TTY 0
Number of Hardware InterfacesUSB 2
Number of Hardware InterfacesWireless 0
Number of Hardware InterfacesPROFINET 0
Memory Size240000 kB
Security50
Input Voltage TypeDC
Degree of ProtectionFront IP66
Supply Voltage18 … 32 V DC
Built-In Depth (t2)56 mm
Ambient Air TemperatureOperation -20 … +60 °C

Additional Information

Product Main TypeCP6621

Why Proax for ABB CP6621?

Proax is an authorized distributor of ABB CP6621 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
