1SAP576200R0001

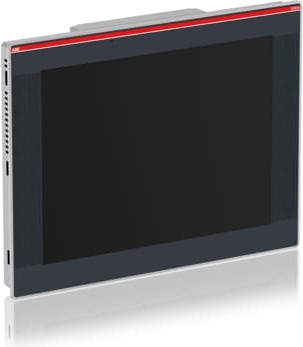

CP676-WEB Control Panel 15" TFT touch screen, 64 K colors, 1024 x 768 pixel,
microbrowser for V2.3 webserver
Technical Specifications
Additional Information
| ABB Type Designation | CP676-WEB |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Ambient Air Temperature | Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication interface | 2x Ethernet 10/100Mbit |
| Communication interface | 1x RS-232/-422/-485 |
| Communication interface | 2x USB 2.0 Host |
| Communication interface | 1x SD-card slot |
| Communication interface | 2x Expansion slot |
| Country of Origin | Italy (IT) |
| Country of Origin | Germany (DE) |
| Customs tariff number | 85371091 |
| Degree of Protection | acc. to IEC 60529 Front IP66 |
| Degree of Protection | acc. to IEC 60529 Housing IP20 |
| EAN | 4013614493188 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| Gross Weight | 4.9 kg |
| Housing Material | Front side: Aluminium |
| Housing Material | Reverse side: Aluminium |
| Invoice Description | CP676-WEB Control Panel 15" with microbrowser for V2.3 webserver |
| Made to Order | No |
| Memory Size User Data | 256 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 145 mm |
Additional Information
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 410 mm |
| Power Consumption (@Pcons) | 34 W |
| Power Supply | 24 (18 ... 30) V DC |
| Product Main Type | CP676 |
| Product Net Depth / Length | 64 mm |
| Product Net Height | 307 mm |
| Product Net Weight | 3.3 kg |
| Product Net Width | 392 mm |
| Product type | PLC-CP600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| Replaced Product ID (OLD) | 1SAP575200R0001 |
| SCIP | 25e72737-7970-4bbb-8d7b-3656bafb5d1e Germany (DE) |
| Screen Color | 64k colors |
| Screen resolution | 1024 x 768 pixel |
| Screen Size | 4:3 screen 15 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Service life | 40000 hour |
| Short Description | CP676-WEB Control Panel 15",microbr.f.V2.3 websv. |
| Stocked At (Warehouses) | Menden, Germany |
| Stocked At (Warehouses) | Singapore, Singapore |
| Stocked At (Warehouses) | Hangzhou, China |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| USB Port 2 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| EPLAN Data Portal Status | Available but Not EDS Compliant |
Why Proax for ABB CP676-WEB?
Proax is an authorized distributor of ABB CP676-WEB and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CP676WEB |
| Pack Size | 1 |
