Official DistributorBy ABB
SKU
MPN
1SAP541510R0001

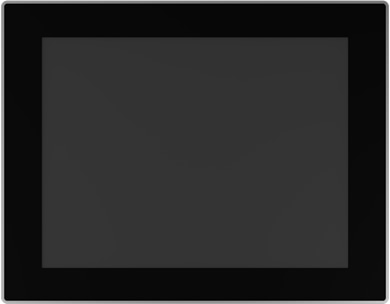

CP6415: CP600 Control panel. 15" TFT touch screen, 64 K colors, 1024 x 768 pixel, Chromium Browser. PB610 applications.
Technical Specifications
Dimensions
| Product Net Weight | 3.19 kg |
| Product Net Depth / Length | 47 mm |
| Product Net Height | 307 mm |
| Product Net Width | 392 mm |
| Gross Weight | 3.5 kg |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 145 mm |
| Package Level 1 Width | 410 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | 15" TFT touch screen, 64 K colors, 1024 x 768 pixel, Chromium Browser |
| Screen Size | 15 in |
| Screen Color | 65536 Colors |
| Screen resolution | 1024 x 786 pixel |
| Display type | TFT, resistive touch |
| Number of Hardware Interfaces | Industrial Ethernet 2 |
| Number of Hardware Interfaces | Other 1 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 2 |
| Number of Hardware Interfaces | Wireless 0 |
| Number of Hardware Interfaces | PROFINET 0 |
| Memory Size | 150000 kB |
| Security | 50 |
| Input Voltage Type | DC |
| Degree of Protection | Front IP66 |
| Supply Voltage | 18 … 32 V DC |
| Built-In Depth (t2) | 40 mm |
| Ambient Air Temperature | Operation -20 … +60 °C |
Additional Information
| Product Main Type | CP6415 |
