1SAP530100R0001

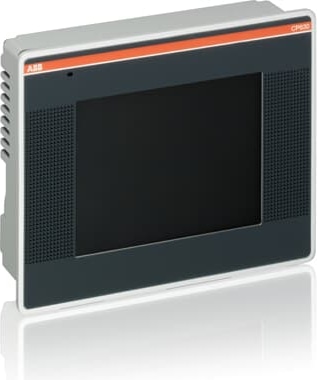

CP630 Control Panel 5.7" TFT touch screen, 64 K colors, 320 x 240 pixel, PB610 runtime license
Technical Specifications
Additional Information
| ABB Type Designation | CP630 |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Ambient Air Temperature | Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication interface | 2x Ethernet 100 MBit |
| Communication interface | 1x RS232/422/485 |
| Communication interface | 2x USB 2.0 Host |
| Communication interface | 1x SD card slot |
| Communication interface | 2x Expansion slot |
| Country of Origin | Italy (IT) |
| Country of Origin | Germany (DE) |
| Country of Origin | Finland (FI) |
| Customs tariff number | 85371091 |
| Declaration of Conformity - C-Tick | 1SAA960002-3301 |
| Declaration of Conformity - KCC | 1SAA960002-4801 |
| Degree of Protection | acc. to IEC 60529 Front IP66 |
| Degree of Protection | acc. to IEC 60529 Housing IP20 |
| EAN | 4016779864886 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| Gross Weight | 1.3 kg |
| Housing Material | Front side: Zamak |
| Housing Material | Reverse side: Aluminium |
| Invoice Description | CP630 Control Panel 5.7" TFT touch scree |
| Made to Order | No |
| Maximum Order Quantity | 0 piece |
| Memory Size User Data | 128 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 280 mm |
Additional Information
| Package Level 1 Height | 120 mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 210 mm |
| Power Consumption (@Pcons) | 16.8 W |
| Power Supply | 24 (18 ... 30) V DC |
| Product Main Type | CP630 |
| Product Net Depth / Length | 51 mm |
| Product Net Height | 147 mm |
| Product Net Weight | 0.82 kg |
| Product Net Width | 187 mm |
| Product type | PLC-CP600 |
| Programming Software | PB610 Panel Builder 600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| SCIP | 6e63d2b2-83a5-4f6e-969e-6084fda13d6c Germany (DE) |
| Screen Color | 64k colors |
| Screen resolution | 320 x 240 pixel |
| Screen Size | 4:3 screen 5.7 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Service life | 40000 hour |
| Short Description | CP630 Control Panel 5.7" TFT touch screen |
| Stocked At (Warehouses) | Menden, Germany |
| Stocked At (Warehouses) | Singapore, Singapore |
| Stocked At (Warehouses) | Hangzhou, China |
| Stocked At (Warehouses) | Bairro Santo Antonio, Brazil |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| USB Port 2 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| EPLAN Data Portal Status | Available but Not EDS Compliant |
