Phoenix Contact 3214023
AllConnectorsTerminal blocksPush-in connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTI 16/S BU
Weight
0.03 kg
Series PTI

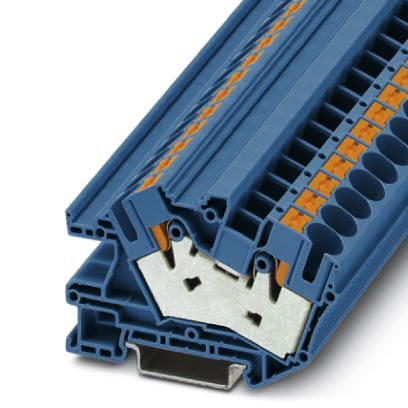

PTI 16/S BU - Installation terminal block

Installation terminal block, nom. voltage: 500 V, nominal current: 76 A, Push-in connection, 1 level, Rated cross section: 16 mm2, cross section: 0.5 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue

  • Compatible with all Phoenix Contact installation terminal blocks
  • As well as the testing facility in the function shaft, each terminal point has a test contact
  • Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
  • Compact design tailored to distribution boards
  • The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
Technical Specifications

General

Number of rows1
Number of Connections2
Potentials1
Nominal cross section16 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V0
Mounting TypeNS 35/7,5
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition2.43 W
Maximum Load Current76 A (with 16 mm² conductor cross section)
Nominal current IN76 A
Nominal voltage UN500 V
Open side panelYes
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of flexion and pull-out testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.5 mm² / 0.3 kg
Bending test conductor cross section/weight16 mm² / 2.9 kg
Tensile test resultTest passed
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint5 N
Result of voltage-drop testTest passed
Result of temperature-rise testTest passed
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Short circuit stability resultTest passed
Conductor cross section short circuit testing16 mm²
Short-time current1.92 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Result of aging testTest passed
Ageing test for screwless modular terminal block temperature cycles192
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 2, bogie-mounted
Test frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width10.2 mm
End cover width2.2 mm
Length77.7 mm
Height49.6 mm
Height NS 35/7,551.1 mm
Height NS 35/1558.6 mm

Connection data

Connection1 level
Connection MethodPush-in connection
Stripping length18 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.4
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible4
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum1.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum4 mm²
Connection cross sections directly pluggable1 mm² 16 mm²
Conductor cross section solid min.1 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm²
Internal cylindrical gageA6

Ambient conditions

Operating Temperature-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
