Phoenix Contact 3214024
AllConnectorsTerminal blocksPush-in connection

3214024

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX3214024
MPN
PTI 16/S-PE
Weight
0.036 kg
Series PTI

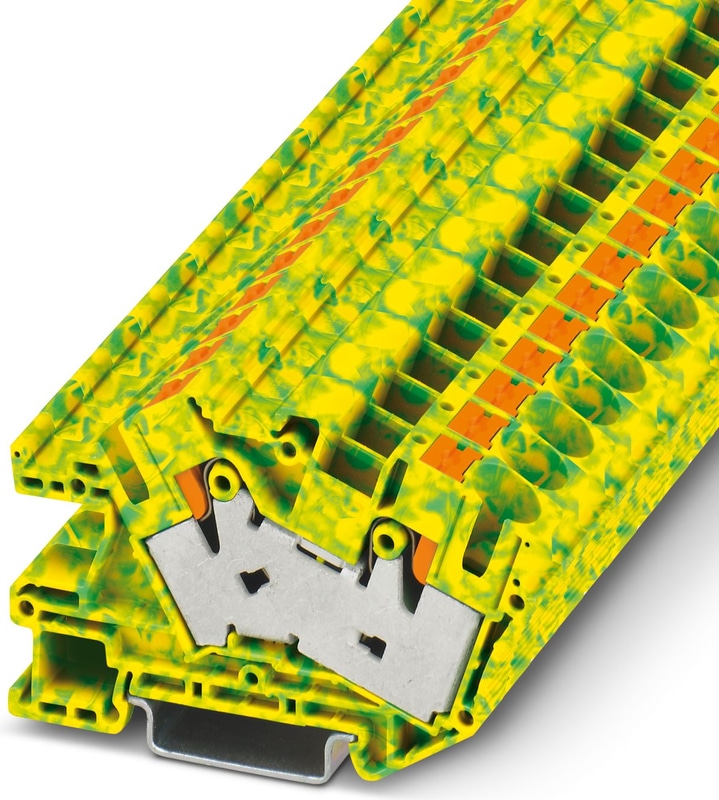

PTI 16/S-PE - Installation ground terminal block

Installation ground terminal block, nom. voltage: 500 V, nominal current: 76 A, Push-in connection, 1 level, Rated cross section: 16 mm2, cross section: 0.5 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow

  • Compatible with all Phoenix Contact installation terminal blocks
  • As well as the testing facility in the function shaft, each terminal point has a test contact
  • Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
  • Compact design tailored to distribution boards
  • The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
Technical Specifications

Product properties

Number of Connections2
Number of rows1
Potentials2

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage6 kV
Maximum power dissipation for nominal condition2.43 W

Connection data

PEN functionyes
Grounding footYes
Number of connections per level2
Nominal cross section16 mm²

1 level

Stripping length18 mm
Internal cylindrical gageA6
Connection in acc. with standardIEC 60947-7-1/IEC 60947-7-2
Conductor cross section rigid0.5 mm² ... 16 mm²
Cross section AWG24 ... 6 (converted acc. to IEC)
Conductor cross section flexible0.5 mm² ... 16 mm²
Conductor cross section, flexible [AWG]20 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.5 mm² ... 16 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.5 mm² ... 16 mm²
Nominal Current76 A
Nominal Voltage500 V
Nominal cross section16 mm²

1 level Connection cross sections directly pluggable

Conductor cross section rigid1 mm² ... 16 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)4 mm² ... 16 mm²
Flexible conductor cross section (ferrule with plastic sleeve)2.5 mm² ... 16 mm²

Dimensions

Width10.2 mm
End cover width2.2 mm
Height77.7 mm
Depth49.6 mm
Depth on NS 35/7,551.1 mm
Depth on NS 35/1558.6 mm

Material specifications

Colorgreen-yellow
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Mechanical data

Open side panelYes

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 2, bogie-mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1/IEC 60947-7-2

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
