Official DistributorSKU
PHX2702983
MPN
2702983
Weight
0.384 kg

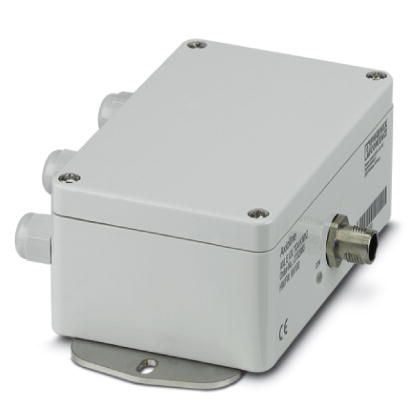

Distributed I/O device - AXL E IOL TC4/K M12
Axioline E IO-Link/analog converter with 4 analog TC inputs (type K/J), 2-conductor connection technology, 1 IO-Link A port, 24 V DC, IP65 degree of protection
- Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
- IO-Link A port
- IO-Link specification V1.1.2
- Status indicators
- 4 differential inputs for thermocouples
- Measuring range type K: -270°C ... +1,372°C
- Measuring range type J: -210 °C ... +1200 °C
- Selectable resolution 0.1 K/0.01 K
- Connection of sensors in 2-conductor technology
- M12 cable gland, Push-in Technology
- Diagnostic information in the process data word
- Supply of the module electronics via the IO-Link interface of the master
- Degree of protection: IP65
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Caption | Dimensions (in mm) |
| Width | 150 mm |
| Height | 54 mm |
| Depth | 118 mm |
| Note on dimensions | When installing, note the length of the M12 connector for the IO-Link cable and the bending radii of the TC cables. |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of Protection | IP65 (not UL-tested) |
General
| Housing Material | Polycarbonate |
| Color | light grey RAL 7035 |
| Net weight | 384.3 g |
| Degree of pollution | 2 (EN 60664-1) |
Electrical isolation
| Test section | IO-Link bus logic 500 V AC 50 Hz 1 min. |
| Test section | Thermocouple I/O devices 500 V AC 50 Hz 1 min. |
| Test section | Functional ground 500 V AC 50 Hz 1 min. |
Standards and Regulations
| Immunity to ESD | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion A, 6 kV contact discharge, 8 kV air discharge |
| Immunity to EF | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m |
| Immunity to burst | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion A, 2 kV |
| Immunity to conducted interference | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V |
| Interference emission | Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 Class A |
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 50g, 11 ms period, half-sine shock pulse |
| Mechanical tests | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
