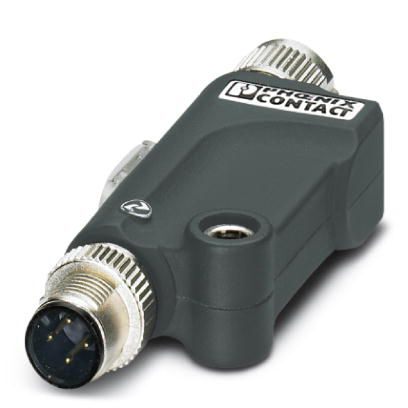

Distributed I/O device - AXL E IOL AO1 I M12 S
Axioline E-IO-Link/analog converter for connecting an analog actuator, 4 mA ... 20 mA, M12 fast connection technology, straight version
- Straight version
- 1 IO-Link interface
- 1 analog output
- Connection of actuator in 3-conductor technology
- Current range: 4 mA ... 20 mA
- IO-Link and actuator connections via M12 connectors
- Functional ground connection for local connection to functional ground
- Supply of the module electronics and the actuator via the IO-Link interface of the IO-Link master
- Diagnostic indicator
- IO-Link specification V1.1.1
Documents
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Width | 16.6 mm |
| Height | 29 mm |
| Depth | 79.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of Protection | IP65/IP67 |
General
| Net weight | 34 g |
| Degree of pollution | 2 |
| Diagnostics messages | Short circuit Message in the diagnostic code (in the IB IL format) |
| Diagnostics messages | Configuration invalid Message in the diagnostic code (in the IB IL format) |
| Diagnostics messages | Module faulty Message in the diagnostic code (in the IB IL format) |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 Operation: 2g |
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 Storage/transport: 5g |
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 30g, 11 ms, three shocks in each space direction |
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Storage/transport: 50g, 11 ms, three shocks in each space direction |
| Mechanical tests | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g, 16 ms, 1000 shocks, in all space directions |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
