1035864
Official DistributorSKU
PHX1035864
MPN
VAL-MS-BE-PCB-FM
Weight
0.04 kg

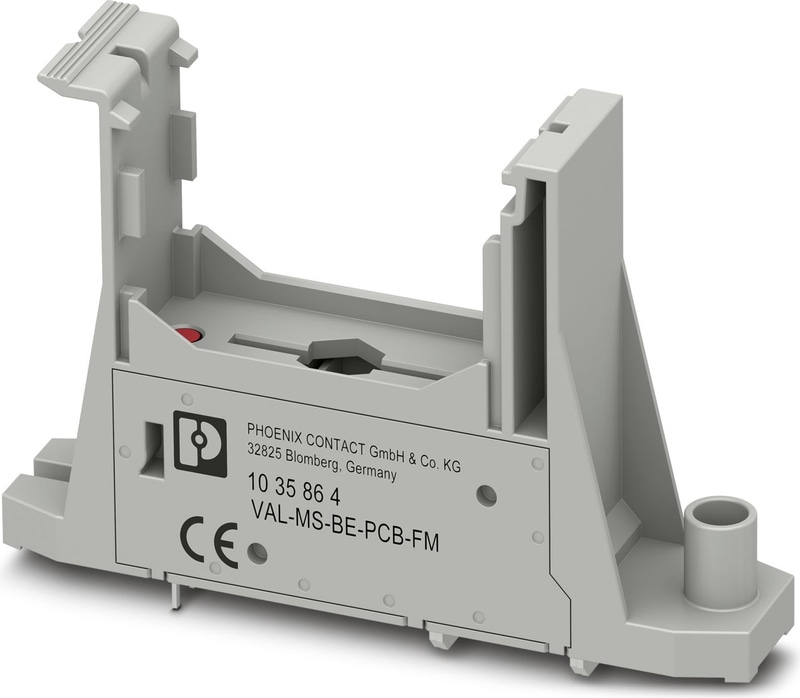

VAL-MS-BE-PCB-FM - Surge protection base-element
Single-channel base element for surge protective devices VAL-MS series type I and type II, for isolated and grounded voltage systems up to 1500 V DC and 690 V AC, for space-saving PCB installation, with integrated remote indication contact
- With floating remote indication contact
- Coding when protective plug is inserted for the first time
- Single/multi-position design for accommodating protective plugs
Technical Specifications
Product properties
| Product family | VALVETRAB MS |
| IEC test classification | I / II |
| EN type | T1 / T2 |
| Distance between live and grounded parts | 16 mm |
| Installation location | Interior |
| Accessibility | Accessible |
Insulation characteristics
| Overvoltage category | III (with AC) |
| Overvoltage category | II (DC) |
| Pollution degree | 2 |
Indicator/remote signaling
| Switching function | Changeover contact |
| Operating Voltage | 5 V AC ... 30 V AC |
| Operating Voltage | 30 V DC |
| Operating current | 5 mA AC ... 1 A AC |
| Operating current | 1 A DC |
Dimensions
| Width | 20 mm |
| Height | 88 mm |
| Depth | 53 mm (Without pin length) |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6-FR 20% GF |
| Material group | I |
| Housing Material | PA 6.6-FR 20 % GF |
Protective circuit
| Maximum continuous voltage UC | 760 V AC |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Lightning surge current Iimp (10/350) μs | 12.5 kA |
| Max. backup fuse with branch wiring | 250 A (gG) |
Protective circuit DC voltage side (DC)
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Recommended backup fuse maximum | 250 A (gG) |
| Max. backup fuse with branch wiring | 250 A (gG) |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum continuous operating voltage UCPV | 800 V DC |
| Short-circuit current rating ISCPV | 6000 A (DC) |
Additional technical data
| Short-circuit current rating ISCCR | 25 kA (with AC) |
| Maximum discharge current Imax (8/20) µs | 40 kA |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | 5000 m (Basic insulation) |
| Altitude | 3000 m () |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Shock (operation) | 15g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 2g (10-500 Hz/2.5 h/XYZ) |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
| Standards/specifications | EN 50539-11 |
| Note | 2013 |
Mounting
| Mounting Type | PCB mounting |
Why Proax for Phoenix Contact 1035864?
Proax is an authorized distributor of Phoenix Contact 1035864 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
