Official DistributorSKU
MPN
UM 72-FE BK
Weight
0.006 kg
Series UM

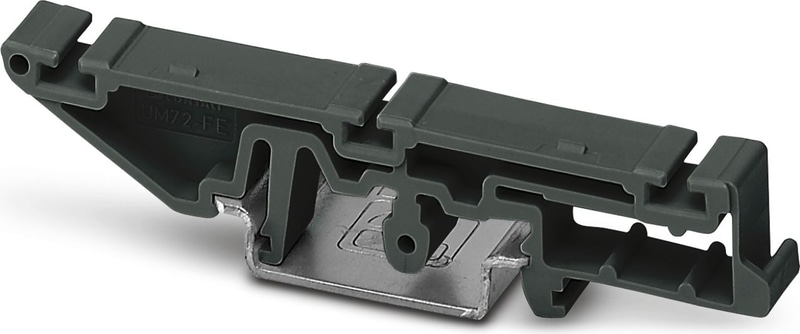

UM 72-FE BK - Foot element
Foot element, 72 mm wide, for mounting on NS 32 or NS 35/7.5, below profile housing UM 72.
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM72 |
| Type | Base element for the DIN rail, for mounting below UM-PRO PROFILE (width: 72 mm) |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Why Proax for Phoenix Contact 2977500?
Proax is an authorized distributor of Phoenix Contact 2977500 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
