2907383
Official DistributorSKU
PHX2907383
MPN
FLKM 50-PA/SC/DIO/S7-1500
Weight
0.093 kg
Series FLKM

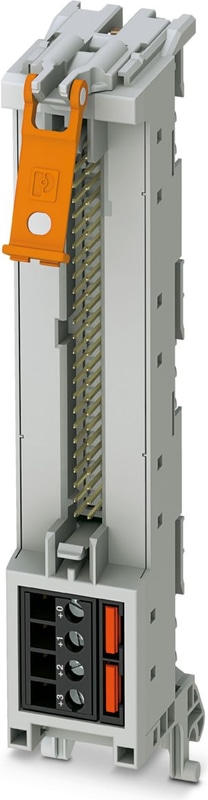

FLKM 50-PA/SC/DIO/S7-1500 - Front adapter
VARIOFACE front adapter with screw connection, for SIMATIC® S7-1500 digital 35 mm modules, 1x 32 channels can be connected.
Technical Specifications
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible operating voltage | < 50 V DC |
| Max. permissible current | 1 A (per path) |
| Max. permissible total current | 2 A (per byte when supplying from the module side) |
| Max. permissible total current | 12 A (When supplying via the front adapter) |
| Nominal operating mode | 100% operating factor |
| Rated surge voltage | 0.5 kV |
Supported controller SIEMENS S7-1500
| Suitable I/O card | 6ES7521-1BL00-0AB0 |
| Suitable I/O card | 6ES7522-1BL00-0AB0 |
| Suitable I/O card | 6ES7522-1BL01-0AB0 |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Supply
| Connection Method | Screw connection |
| Tightening torque | 0.4 Nm |
Item dimensions
| Width | 29.8 mm |
| Height | 130.4 mm |
| Depth | 46 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 61131-2 |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Accessories
VIP-2/PT/FLK50/LED/PLC - VARIOFACE interface module, with push-in connection and light indicator, for 32 channels
PLC-V8/FLK14/OUT - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of output cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
PLC-V8/FLK14/IN - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of input cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
PLC-V8L/FLK14/OUT - V8 adapter for 8 x PLC-INTERFACE (14 mm), controller: PLC system cabling of output cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
FLKM 50/KDS3-MT/PPA/S7-1500 - VARIOFACE termination board for Siemens SIMATIC® S7-1500, with SIMATIC®-specific marking (1-40), knife-disconnect terminal block, and test pick-off
FLK 50/EZ-DR/ 125/KONFEK - Round cable set; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 1.25 m- FLK 50/EZ-DR/1200/KONFEK - Round cable set; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 12 m
Why Proax for Phoenix Contact 2907383?
Proax is an authorized distributor of Phoenix Contact 2907383 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
