2321952
Official DistributorSKU
PHX2321952
MPN
FLKM 50-PA/DO326/S7-300
Weight
0.059 kg
Series FLKM

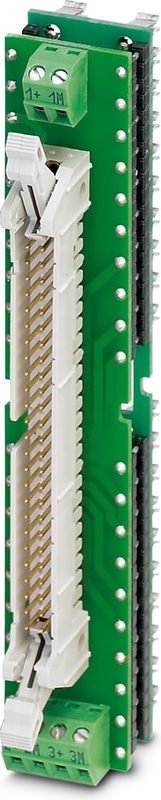

FLKM 50-PA/DO326/S7-300 - Front adapter
VARIOFACE front adapter, for failsafe 6ES7 326-2BF01-0AB0 module of the SIMATIC® S7-300 (50-pos. FLK connector)
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Current (Per path) | ≤ 2 A |
| Current (Total current) | ≤ 8 A (during supply via a separate bridged power supply) |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | 6ES7326-2BF01-0AB0 |
| Suitable I/O card | 6ES7326-2BF10-0AB0 |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Supply
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.4 mm² ... 1 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 |
Item dimensions
| Width | 27 mm |
| Height | 115.09 mm |
| Depth | 29.82 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | The products may only be installed or used by qualified personnel. Compliance with all safety requirements, including all applicable laws, regulations, and standards, must be ensured. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
