FLKM 50-PA-AB/1756/EXTC
Weight
0.066 kg
Series FLKM

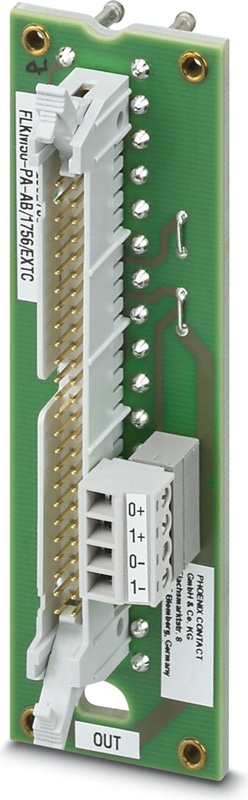

FLKM 50-PA-AB/1756/EXTC - Front adapter
VARIOFACE front adapters, for Allen Bradley ControlLogix and Honeywell PlantScape, max. 1 x 32 channels can be connected. The front adapters are pushed into the high 1756-TBE hoods (not supplied as standard).
Technical Specifications
Product properties
| Product family | VARIOFACE |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (per branch) | ≤ 1 A |
| Current (Voltage supply via screw connection) | ≤ 8 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
Supported controller ALLEN-BRADLEY ControlLogix
| Suitable I/O card | 1756-IA16I |
| Suitable I/O card | 1756-IB16D |
| Suitable I/O card | 1756-IB16I |
| Suitable I/O card | 1756-IH16I |
| Suitable I/O card | 1756-OB32 |
| Suitable I/O card | 1756-IF8 |
| Suitable I/O card | 1756-IF16 |
| Suitable I/O card | 1756-HSC |
| Suitable I/O card | 1756-M02AE |
| Suitable I/O card | 1756-IF8H |
Supported controller HONEYWELL Experion PKS C200
| Suitable I/O card | TC-IDJ 161 |
| Suitable I/O card | TC-IDX 161 |
| Suitable I/O card | TC-IDK 161 |
| Suitable I/O card | TC-ODD 321 |
| Suitable I/O card | TC-IAH 161 |
Connection 1 (control level)
| Connection Method | Plug-in connection |
| Number of Positions | 36 |
Connection 2 (field level)
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection 3 (supply)
| Connection Method | Screw connection |
| Number of Positions | 4 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Pitch | 3.81 mm |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | Plug-in mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
