2908042
Official DistributorSKU
PHX2908042
MPN
FLKM 50-PA-GE/RXI/AN
Weight
0.112 kg
Series FLKM

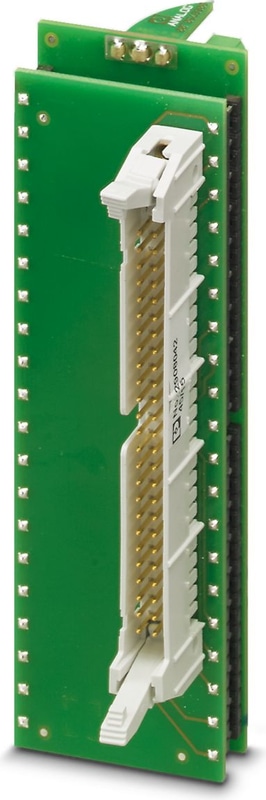

FLKM 50-PA-GE/RXI/AN - Front adapter
VARIOFACE front adapter, for GE Fanuc PACSystems RX3i, analog cards can be connected.
Documents
Technical Specifications
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (Per path) | ≤ 1 A |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV (Functional insulation) |
Supported controller GE-FANUC RX3i
| Suitable I/O card | IC695ALG608 |
| Suitable I/O card | IC695ALG616 |
| Suitable I/O card | IC695ALG626 |
| Suitable I/O card | IC695ALG629 |
| Suitable I/O card | IC695ALG704 |
| Suitable I/O card | IC695ALG708 |
| Suitable I/O card | IC695ALG728 |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Item dimensions
| Width | 34.8 mm |
| Height | 108.5 mm |
| Depth | 56.77 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
Mounting
| Assembly note | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2908042?
Proax is an authorized distributor of Phoenix Contact 2908042 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
