2289777
Official DistributorSKU
PHX2289777
MPN
FLKM 50-PA-SAT/ODPG
Weight
0.1 kg
Series FLKM

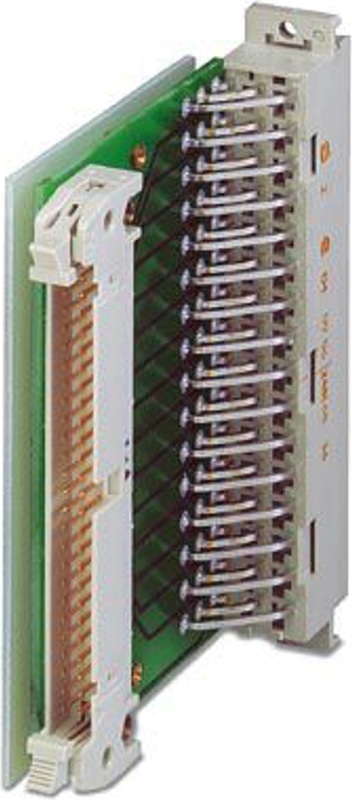

FLKM 50-PA-SAT/ODPG - Front adapter
VARIOFACE front adapter, for SattCon digital output, series 31-50, 31-90, 60-50
Technical Specifications
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible operating voltage | < 50 V AC |
| Max. permissible operating voltage | 60 V DC |
| Max. permissible current | 1 A (per path) |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 60664A |
| Standards/regulations | DIN VDE 0110 |
| Standards/regulations | DIN VDE 0160 (in parts) |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2289777?
Proax is an authorized distributor of Phoenix Contact 2289777 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 4 |
