2307662
Official DistributorSKU
PHX2307662
MPN
FLKM 50-PA-S300/SO167
Weight
0.063 kg
This product is Not Cancellable/Not Returnable
Series FLKM

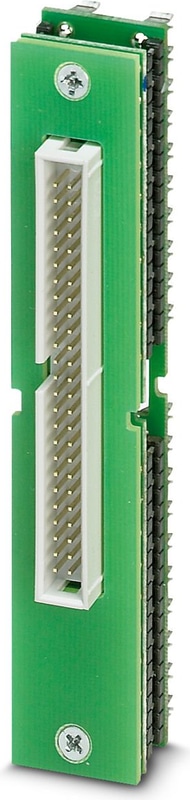

FLKM 50-PA-S300/SO167 - Front adapter
Front adapter for SIMATIC S7-300
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Current (Per path) | ≤ 1 A |
| Current (Total current) | ≤ 2 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | 6ES7326-1BK02-0AB0 |
| Suitable I/O card | 6ES7336-1HE00-0AB0 |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | < 2000 m |
Air clearances and creepage distances
| Standards/regulations | DIN EN 50178: 1998-04 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | The products may only be installed or used by qualified personnel. Compliance with all safety requirements, including all applicable laws, regulations, and standards, must be ensured. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2307662?
Proax is an authorized distributor of Phoenix Contact 2307662 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
