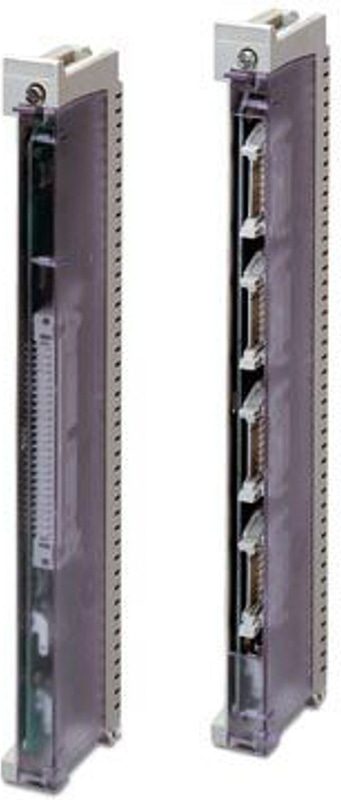

The figure shows versions FLKM 50-PA-S135/P and FLKM 50/4-FLK14/PA-S135
2288587
Official DistributorSKU
PHX2288587
MPN
FLKM 50-PA-S135/P
Weight
0.19 kg
This product is Not Cancellable/Not Returnable
Series FLKM
FLKM 50-PA-S135/P - Front adapter
VARIOFACE front adapter, for Siemens SIMATIC® S5-135U, 1x 32 channels can be connected
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (Per path) | ≤ 0.5 A |
| Current (per connection) | ≤ 8 A (Feed-in via separate power supply) |
| Current (Total current per byte) | ≤ 2 A (Feed-in via connector) |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | DIN EN 50178 |
Mounting
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). |
| Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2288587?
Proax is an authorized distributor of Phoenix Contact 2288587 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
