FLKM 50-PA-S400
Weight
0.199 kg
Series FLKM

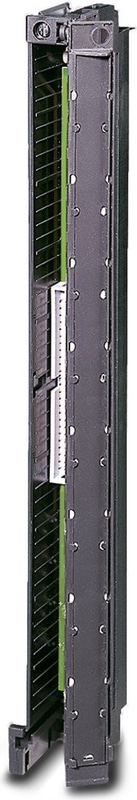

FLKM 50-PA-S400 - Front adapter
VARIOFACE front adapter, for Siemens SIMATIC® S7-400, 1x 32 channels can be connected
- Transmission of a maximum of 32 digital channels via a 50-pos. system cable
Technical Specifications
Product properties
| Product family | VARIOFACE |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (per branch) | ≤ 1 A |
| Current (Voltage supply via IDC/FLK) | ≤ 2 A |
| Current (Voltage supply via spade connection) | ≤ 8 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
Supported controller SIEMENS S7-400
| Suitable I/O card | 6ES7421-1BL01-0AA0 |
| Suitable I/O card | 6ES7422-1BL00-0AA0 |
| Suitable I/O card | 6ES7422-7BL00-0AB0 |
| Note | Only in conjunction withVIP-2/SC/FLK50/S7/A-S400, Item No. 2322359VIP-2/PT/FLK50/S7/A-S400, Item No. 2904289all DR wire bridges on the adapter must be disconnected. |
| Suitable I/O card | 6ES7421-7BH01-0AB0 |
| Suitable I/O card | 6ES7421-7DH00-0AA0 |
Connection 1 (control level)
| Connection Method | Plug-in connection |
| Number of Positions | 48 |
Connection 2 (field level)
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection 3 (supply)
| Connection Method | Spade connection |
| Number of Positions | 5 |
| Note | 2,8 x 0,8 |
Item dimensions
| Width | 24.2 mm |
| Height | 273.5 mm |
| Depth | 67.6 mm |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | Plug-in mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Notes on operation | For I/O cards 6ES7 421-1BL01-0AA0, 6ES7 422-1BL00-0AA0, and 6ES7 422-7BL00-0AB0:Thanks to the wire bridges that are supplied as standard, the input and output bytes are non-isolated. |
| Notes on operation | For I/O cards 6ES7 421-7BH01-0AB0 and 6ES7 421-7DH00-0AB0:Only operate in conjunction with VIP-2/SC/FLK50/S7/A-S400 (Item No. 2322359) or VIP-2/PT/FLK50/S7/A-S400 (Item No. 2904289).All wire bridges on the adapter must be disconnected. |
