2293446
Official DistributorSKU
PHX2293446
MPN
FLKM 50-PA-SLC500/OUT/2A
Weight
0.059 kg
This product is Not Cancellable/Not Returnable
Series FLKM

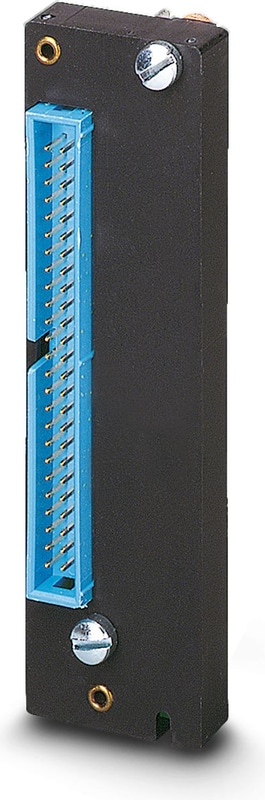

FLKM 50-PA-SLC500/OUT/2A - Front adapter
VARIOFACE front adapter, 1 x 16 channels can be connected for Allen-Bradley SLC 500 1746 OA16 and OW16
- Suitable VARIOFACE termination boards with a wide range of functions and connection options
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Current (Per path) | ≤ 2 A |
| Current (Total current per byte) | ≤ 7 A (Feed-in via connector) |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
Supported controller ALLEN-BRADLEY SLC 500
| Suitable I/O card | 1746 OA16 |
| Suitable I/O card | 1746 OW16 |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2293446?
Proax is an authorized distributor of Phoenix Contact 2293446 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
