2882734
Official DistributorSKU
PHX2882734
MPN
VAL-CP-N/PE-350-ST-GY
Weight
0.041 kg
Series VAL-CP-N-PE

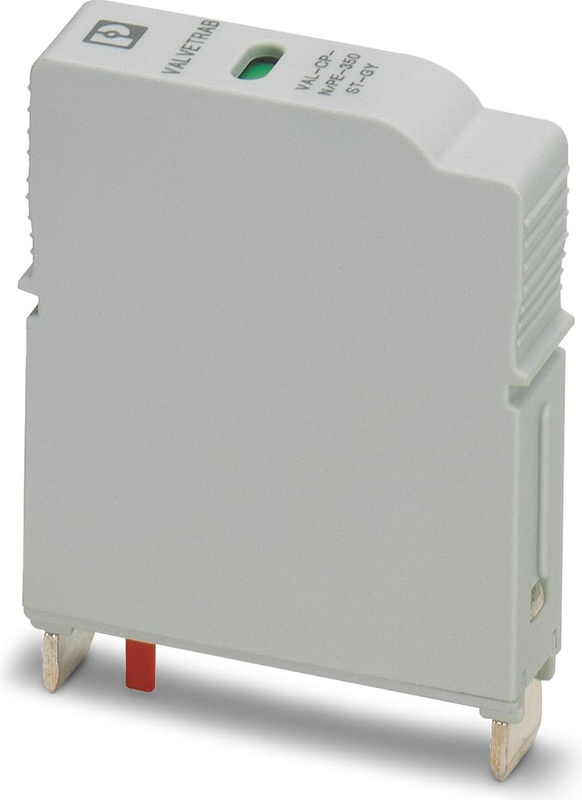

VAL-CP-N/PE-350-ST-GY - Type 2 surge protection plug
Replacement plug for VAL-CP surge arrester with N-PE spark gap.
Technical Specifications
Product properties
| Product family | SEC Family |
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 1 |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 11.7 mm |
| Height | 44.8 mm |
| Depth | 56.4 mm |
| Horizontal pitch | 0.6 Div. |
Material specifications
| Color | light grey (RAL 7035) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT-FR |
| Material group | I |
| Housing Material | PBT-FR |
Protective circuit
| Mode of protection | N-PE |
| Direction of action | N-PE |
| Nominal voltage UN | 240 V AC (TN - only N-PE) |
| Nominal voltage UN | 240 V AC (TT - only N-PE) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 264 V AC |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs | 30 kA |
| Follow current interrupt rating Ifi | 100 A (264 V AC) |
| Voltage protection level Up | ≤ 1.5 kV |
| Residual voltage Ures | ≤ 0.5 kV (at In) |
| Residual voltage Ures | ≤ 0.5 kV (at 10 kA) |
| Residual voltage Ures | ≤ 0.5 kV (at 5 kA) |
| Residual voltage Ures | ≤ 0.5 kV (at 4 kA) |
| Residual voltage Ures | ≤ 0.5 kV (at 2 kA) |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 1.5 kV |
| TOV behavior at UT | 1200 V AC (200 ms / withstand mode) |
| Response time tA | ≤ 100 ns |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | on base element |
