2859628
Official DistributorSKU
PHX2859628
MPN
VAL-CP-175-ST
Weight
0.044 kg
This product is Not Cancellable/Not Returnable
Series VAL-CP

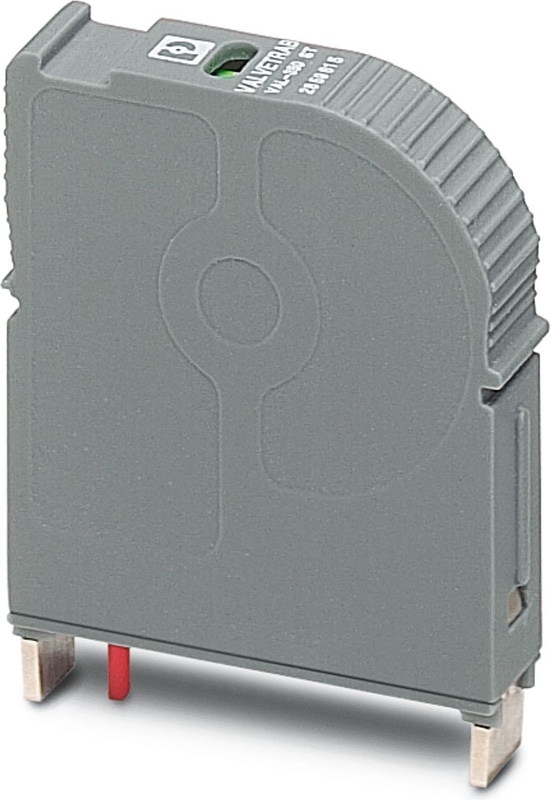

VAL-CP-175-ST - Type 2 surge protection plug
Replacement plug for VAL-CP surge protective device with high-capacity varistor with a low leakage current.
Technical Specifications
Product properties
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 1 |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 11.7 mm |
| Height | 46.4 mm |
| Depth | 56.4 mm |
| Horizontal pitch | 0.6 Div. |
Material specifications
| Color | blue grey (RAL 7031) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT-FR |
| Material group | I |
| Housing Material | PBT-FR |
Protective circuit
| Mode of protection | L-PEN |
| Mode of protection | L-N |
| Direction of action | L-N / L-PEN |
| Nominal voltage UN | 120 V AC (TN) |
| Nominal voltage UN | 120 V AC (TT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 175 V AC |
| Nominal discharge current In (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Short-circuit current rating ISCCR | 25 kA |
| Voltage protection level Up | ≤ 0.85 kV |
| Residual voltage Ures | ≤ 0.85 kV (at In) |
| Residual voltage Ures | ≤ 0.75 kV (at 10 kA) |
| Residual voltage Ures | ≤ 0.65 kV (at 5 kA) |
| Residual voltage Ures | ≤ 0.63 kV (at 4 kA) |
| Residual voltage Ures | ≤ 0.57 kV (at 2 kA) |
| TOV behavior at UT | 240 V AC (5 s / withstand mode) |
| TOV behavior at UT | 240 V AC (120 min / safe failure mode) |
| Response time tA | ≤ 25 ns |
| Max. backup fuse with branch wiring | 315 A (gG) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
UL specifications
| Maximum continuous operating voltage MCOV (L-N) | 175 V AC |
| Nominal discharge current In (L-N) | 20 kA |
| Mode of protection | L-N |
| Nominal Voltage | 125 V AC |
| Power distribution system | Single phase |
| Nominal frequency | 50/60 Hz |
| Measured limiting voltage MLV (L-N) | 1510 V |
| SPD Type | 4CA |
Air clearances and creepage distances
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 / IEC 61643-11 / UL 1449 |
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | on base element |
Why Proax for Phoenix Contact 2859628?
Proax is an authorized distributor of Phoenix Contact 2859628 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
