2804461
Official DistributorSKU
PHX2804461
MPN
VAL-CP-TOV-ST
Weight
0.035 kg

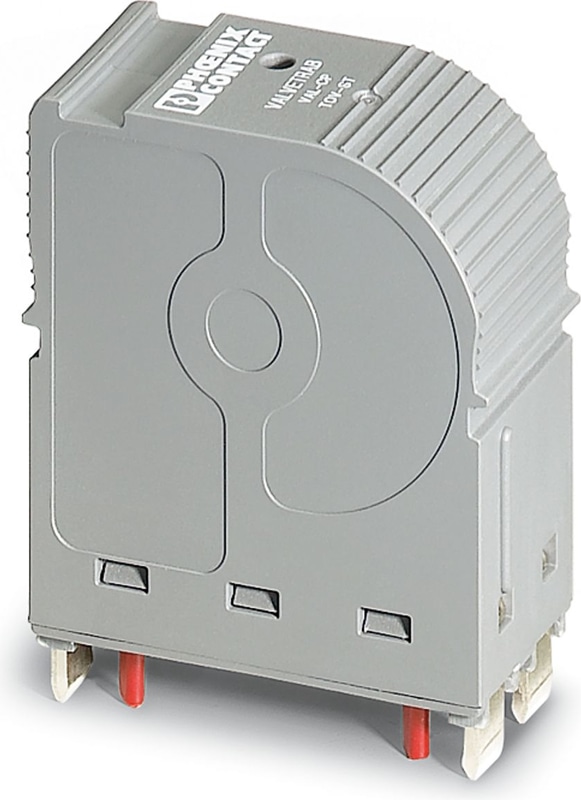

VAL-CP-TOV-ST - Type 2 surge protection plug
Replacement plug for VAL-CP-TOV: Detector circuit for detecting temporary surge voltages. Monitoring the detector circuit with status indicator. Design: 1-phase
Technical Specifications
Product properties
| Type | Male |
| Number of Positions | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Nominal voltage UN | 230 V AC |
Connection data
| Connection Method | Plug-in connection |
Dimensions
| Width | 24 mm |
| Height | 47 mm |
| Depth | 50 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | N-PE |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Standby power consumption PC | 1.60 W |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -5 °C ... 40 °C |
Standards
| Standards/regulations | IEC 61643-1 |
| Standards/regulations | EN 61643-11/A11 |
| Standards/regulations | BTTF128-1/Conv0001/DC |
| Standards/specifications | IEC 61643-1 |
| Note | 2005 |
| Standards/specifications | EN 61643-11 |
| Note | 2002 |
| Standards/specifications | EN 61643-11/A11 |
| Note | 2007 |
| Standards/specifications | BTTF128-1 |
| Note | Conv0001/DC: 2007 |
Mounting
| Mounting Type | on base element |
Why Proax for Phoenix Contact 2804461?
Proax is an authorized distributor of Phoenix Contact 2804461 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
