Phoenix Contact 1407404
AllSensors & Machine VisionSensor/actuator cablingCopper Cables
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
NBC-MS/ 1,0-94B SCO
Weight
0.072 kg
This product is Not Cancellable/Not Returnable
Series NBC-MS

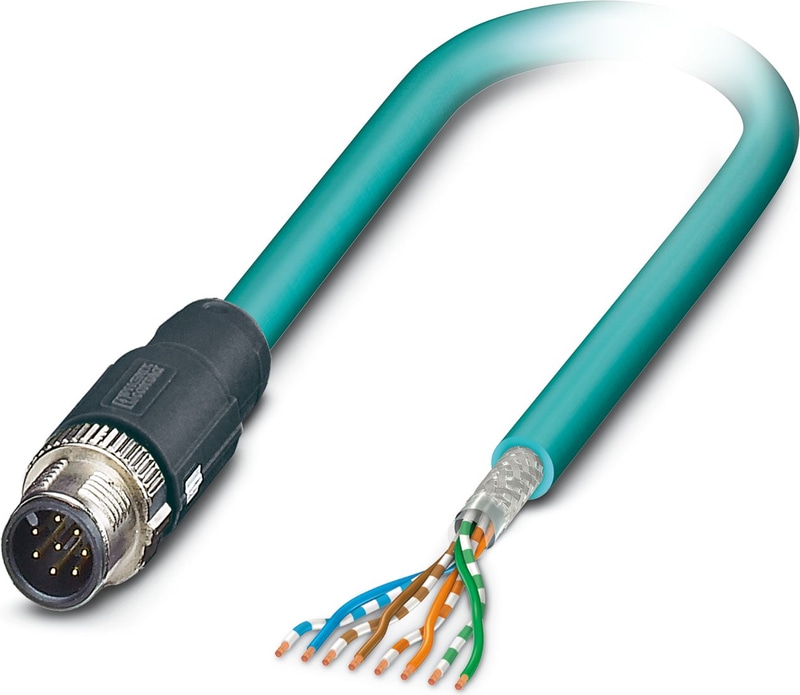

NBC-MS/ 1,0-94B SCO - Network cable

Network cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded, Plug straight M12 SPEEDCON, coding: A / IP67, on free cable end, cable length: 1 m

Documents

Technical Specifications

Notes

GeneralFurther products with variable cable type and variable cable length can be found in the accessories section

Product properties

ApplicationStandard
Sensor TypeEthernet
Number of Positions8
No. of cable outlets1
Shieldedyes
CodingA

Interfaces

Bus systemEthernet
Signal type/categoryEthernet CAT5 (based on IEC 11801), 1 Gbps

Signaling

Status displayno
Status display presentNo

Electrical properties

Nominal voltage UN48 V AC
Nominal voltage UN60 V DC
Nominal current IN2 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)

Connection 1

TypePlug straight M12 SPEEDCON / IP67
Number of Positions8
Locking TypeSPEEDCON
Coding typeA (Standard)
Handle colorblack
MaterialCuZn (Contact)
MaterialNi/Au (Contact surface)
MaterialTPU GF (Contact carriers)
MaterialTPU, hardly inflammable, self-extinguishing (Grip body)
MaterialZinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 90 °C

Connection 2

Typefree cable end

Cable/line

Cable Length1 m

Ethernet flexible CAT5, 4-pair [94B]

Cable weight47 kg/km
UL AWM style20963 (80°C/30 V)
Number of Positions8
Shieldedyes
Cable TypeEthernet flexible CAT5, 4-pair [94B]
Conductor structure4x2xAWG26/7, SF/UTP
Signal runtime5.3 ns/m
Conductor structure signal line7x 0.16 mm
AWG Signal Line26
Conductor Cross Section4x 2x 0.14 mm²
Wire diameter incl. insulation0.96 mm
External Cable Diameter6.40 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Conductor materialBare Cu litz wires
Material wire insulationFoamed PE
Single wire, colorwhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Thickness, outer sheath1.05 mm
Twisted pairs2 cores to the pair
Overall twist4 pairs for core
Optical shield covering70 %
Insulation resistance≥ 5 GΩ*km
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Loop resistance≤ 290.00 Ω/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Cable capacity48 nF/km (at 1 kHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700.00 V (50 Hz, 1 min.)
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Smallest bending radius, fixed installation26 mm
Smallest bending radius, movable installation52 mm
Tensile strength≤ 100 N
Near end crosstalk attenuation (NEXT)71.3 dB (with 1 MHz)
Near end crosstalk attenuation (NEXT)62.3 dB (at 4 МHz)
Near end crosstalk attenuation (NEXT)56.3 dB (at 10 MHz)
Near end crosstalk attenuation (NEXT)53.2 dB (at 16 MHz)
Near end crosstalk attenuation (NEXT)51.8 dB (at 20 МHz)
Near end crosstalk attenuation (NEXT)48.9 dB (at 31.25 МHz)
Near end crosstalk attenuation (NEXT)44.4 dB (at 62.5 МHz)
Near end crosstalk attenuation (NEXT)41.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)53.3 dB (at 4 МHz)
Power-summated near end crosstalk attenuation (PSNEXT)47.3 dB (at 10 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)44.2 dB (at 16 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)42.8 dB (at 20 МHz)
Power-summated near end crosstalk attenuation (PSNEXT)39.9 dB (at 31.25 МHz)
Power-summated near end crosstalk attenuation (PSNEXT)35.4 dB (at 62.5 МHz)
Power-summated near end crosstalk attenuation (PSNEXT)32.3 dB (at 100 MHz)
Return attenuation (RL)23 dB (at 4 МHz)
Return attenuation (RL)24.1 dB (at 8 МHz)
Return attenuation (RL)25 dB (at 10 MHz)
Return attenuation (RL)25 dB (at 16 MHz)
Return attenuation (RL)25 dB (at 20 МHz)
Return attenuation (RL)23.6 dB (at 31.25 МHz)
Return attenuation (RL)21.5 dB (at 62.5 МHz)
Return attenuation (RL)20.1 dB (at 100 MHz)
Shield attenuation3.2 dB (with 1 MHz)
Shield attenuation6 dB (at 4 МHz)
Shield attenuation9.5 dB (at 10 MHz)
Shield attenuation12.1 dB (at 16 MHz)
Shield attenuation13.6 dB (at 20 МHz)
Shield attenuation17.1 dB (at 31.25 МHz)
Shield attenuation24.8 dB (at 62.5 МHz)
Shield attenuation32 dB (at 100 MHz)
Halogen-freeaccording to IEC 60754-1
Flame resistanceaccording to IEC 60332-1-2
Resistance to Oilin accordance with EN 60811-2-1
Ambient Temperature (Operation)-40 °C ... 80 °C (cable, fixed installation)
Ambient Temperature (Operation)-20 °C ... 80 °C (Cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C

Ambient conditions

Degree of ProtectionIP65
Degree of ProtectionIP67
Degree of ProtectionIP65/IP67

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Accessories
