Official DistributorBy ABB
SKU
MPN
1SAP214400R0001
Weight
0.147 kg

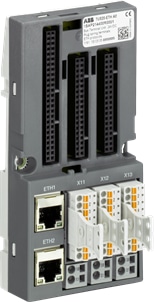

TU520-ETH: S500 Interface terminal unit. For gateway module. Pluggable spring terminal blocs.
Technical Specifications
Dimensions
| Product Net Weight | 0.147 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.219 kg |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | For gateway module. Pluggable spring terminal blocs |
| Degree of Protection | IP20 |
Additional Information
| Product Main Type | TU520 |
Why Proax for ABB TU520-ETH?
Proax is an authorized distributor of ABB TU520-ETH and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | TU520ETH |
| Pack Size | 1 |
