Official DistributorBy ABB
SKU
MPN
1SAP214200R0001

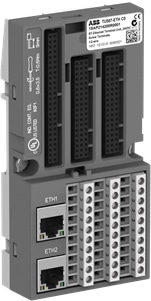

TU507-ETH: S500 Interface terminal unit. For Ethernet protocols. Screw terminals. 2 RJ45 connectors.
Technical Specifications
Dimensions
| Product Net Weight | 0.223 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.256 kg |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | For Ethernet protocols. Screw terminals |
| Degree of Protection | IP20 |
| Supply Voltage | 24 V DC |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| Ambient Air Temperature | Storage -40 ... +70 °C |
Additional Information
| Product Main Type | TU507 |
Why Proax for ABB TU507-ETH?
Proax is an authorized distributor of ABB TU507-ETH and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | TU507ETH |
| Pack Size | 1 |
