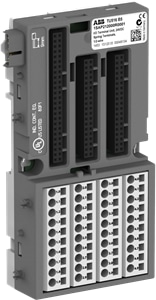

ABB TU516
ABBOfficial Distributor

By ABB

SKU
MPN
1SAP212000R0001
TU516: S500 I/O terminal unit. For analog and 24 VDC digital modules. Spring terminals.
Technical Specifications

Dimensions

Product Net Weight0.159 kg
Product Net Depth / Length28 mm
Product Net Height135 mm
Product Net Width67.5 mm
Gross Weight0.188 kg
Package Level 1 Depth / Length147 mm
Package Level 1 Height40 mm
Package Level 1 Width78 mm
Package Level 1 Units1 carton

Technical

FunctionFor analog and 24 VDC digital modules. Spring terminals
Number of Analog Configurable I/Os0
Degree of ProtectionIP20
Supply Voltage24 V DC
Ambient Air TemperatureOperation 0 ... +60 °C
Ambient Air TemperatureStorage -40 ... +70 °C

Additional Information

Product Main TypeTU516

Why Proax for ABB TU516?

Proax is an authorized distributor of ABB TU516 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
