MPN
1SAP212200R0001

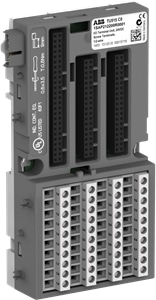

TU515: S500 I/O terminal unit. For analog and 24 VDC digital modules. Screw terminals.
Technical Specifications
Dimensions
| Product Net Weight | 0.232 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.262 kg |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | For analog and 24 VDC digital modules. Screw terminals |
| Number of Analog Configurable I/Os | 0 |
| Degree of Protection | IP20 |
| Supply Voltage | 24 V DC |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| Ambient Air Temperature | Storage -40 ... +70 °C |
Additional Information
| Product Main Type | TU515 |
