Official DistributorBy ABB
SKU
MPN
1SAP210400R0001

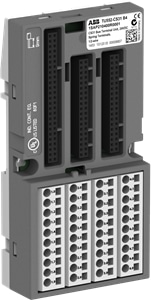

TU552-CS31: S500 Interface terminal unit. For CS31 protocol. Spring terminals.
Technical Specifications
Dimensions
| Product Net Weight | 0.159 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.192 kg |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Width | 78 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | For CS31 protocol. Spring terminals |
| Number of Analog Configurable I/Os | 0 |
| Degree of Protection | IP20 |
| Supply Voltage | 24 V DC |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| Ambient Air Temperature | Storage -40 ... +70 °C |
Additional Information
| Product Main Type | TU552 |
Why Proax for ABB TU552-CS31?
Proax is an authorized distributor of ABB TU552-CS31 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | TU552CS31 |
| Pack Size | 1 |
