Official DistributorBy ABB
SKU
MPN
1SAP121100R0071

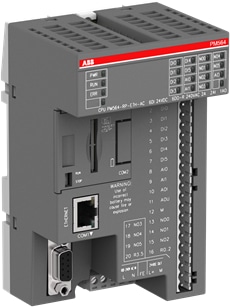

PM564-RP-ETH-AC:AC500,Prog.Log.Control. ,128kB,6DI/6DO-R/2AI/1AO,115-230VAC, 1xRS485,2xOption Slot
Technical Specifications
Dimensions
| Product Net Weight | 0.355 kg |
| Product Net Depth / Length | 74 mm |
| Product Net Height | 135 mm |
| Product Net Width | 82 mm |
| Gross Weight | 0.513 kg |
Technical
| Number of Hardware Interfaces | Industrial Ethernet 1 |
| Number of Hardware Interfaces | Other 0 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 1 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 0 |
| Number of Hardware Interfaces | Wireless 0 |
| Memory Size | 142 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.00008 ms |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Number of digital inputs | 8 |
| Number of Digital Outputs | 6 |
| Number of Digital Configurable I/Os | 0 |
| Input Voltage Type | DC |
| Rated voltage (UR) | 230 V AC |
| Supply Voltage | 100 … 240 V AC |
Additional Information
| Product Main Type | PM564 |
