Official DistributorBy ABB
SKU
MPN
1SAP123400R0072

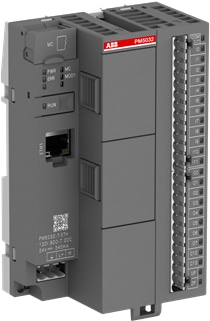

PM5032-T-ETH: AC500-eCo Processor module. Memory 2MB. 12 DI 24VDC. 8 DO 24VDC 0.5A. 2 DC 24VDC. Ethernet interface. 2 option slots.
Technical Specifications
Dimensions
| Product Net Weight | 0.253 kg |
| Product Net Depth / Length | 74 mm |
| Product Net Height | 135 mm |
| Product Net Width | 82 mm |
| Gross Weight | 0.295 kg |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Width | 175 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | Memory 2MB. 12 DI 24VDC. 8 DO 24VDC 0.5A. 2 DC 24VDC. Ethernet interface. 2 option slots |
| Number of Hardware Interfaces | Industrial Ethernet 1 |
| Number of Hardware Interfaces | Other 0 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 0 |
| Number of Hardware Interfaces | Wireless 0 |
| Memory Size | 5032 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.00002 ms |
| Number of digital inputs | 12 |
| Number of Digital Outputs | 8 |
| Number of Digital Configurable I/Os | 2 |
| Input Voltage Type | DC |
| Output Voltage (Uout) | 24 V DC |
| Output Current | 0.5 A |
| Degree of Protection | IP20 |
| Rated voltage (UR) | 24 V DC |
| Supply Voltage | 20.4 … 28.8 V DC |
Additional Information
| Product Main Type | PM5032 |
