Official DistributorBy ABB
SKU
MPN
1SAP111300R0278
Weight
0.157 kg

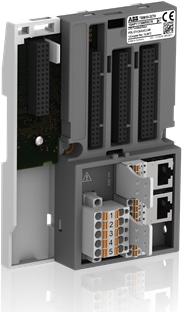

TB5610-2ETH: AC500 Terminal base. For AC500 V3. 1 slot for communication module. 2 Ethernet interfaces. 1 serial interface. 1 CAN interface.
Technical Specifications
Dimensions
| Product Net Weight | 0.157 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 95.5 mm |
| Gross Weight | 0.228 kg |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Width | 131 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | For AC500 V3. 1 slot for communication module. 2 Ethernet interfaces. 1 serial interface. 1 CAN interface |
| Input Voltage Type | DC |
| Degree of Protection | IP20 |
Additional Information
| Product Main Type | TB5610 |
Why Proax for ABB TB5610-2ETH?
Proax is an authorized distributor of ABB TB5610-2ETH and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | TB56102ETH |
| Pack Size | 1 |
