MPN
1SAP124500R0073

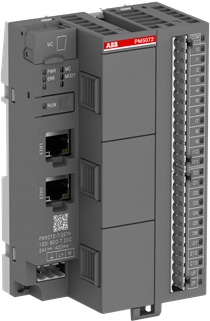

PM5072-T-2ETH: AC500-eCo Processor module. Memory 8MB. 12 DI 24 VDC. 8 DO 24 VDC 0.5A. 2 DC 24 VDC. 2 Ethernet interfaces. 3 option slots.
Technical Specifications
Dimensions
| Product Net Weight | 0.265 kg |
| Product Net Depth / Length | 74 mm |
| Product Net Height | 135 mm |
| Product Net Width | 82 mm |
| Gross Weight | 0.307 kg |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Width | 175 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | Memory 8MB. 12 DI 24 VDC. 8 DO 24 VDC 0.5A. 2 DC 24 VDC. 2 Ethernet interfaces. 3 option slots |
| Number of Hardware Interfaces | Industrial Ethernet 2 |
| Number of Hardware Interfaces | Other 0 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 0 |
| Number of Hardware Interfaces | Wireless 0 |
| Memory Size | 9100 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.00002 ms |
| Number of digital inputs | 12 |
| Number of Digital Outputs | 8 |
| Number of Digital Configurable I/Os | 2 |
| Input Voltage Type | DC |
| Degree of Protection | IP20 |
| Rated voltage (UR) | 24 V DC |
| Supply Voltage | 20.4 … 28.8 V DC |
Additional Information
| Product Main Type | PM5072 |
