Official DistributorBy ABB
SKU
MPN
1SAP131000R0278
Weight
0.133 kg

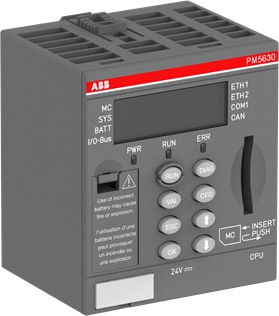

PM5630-2ETH: AC500 Processor module. Memory 8MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display.
Technical Specifications
Dimensions
| Product Net Weight | 0.133 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.157 kg |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | Memory 8MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display |
| Number of Hardware Interfaces | Industrial Ethernet 2 |
| Number of Hardware Interfaces | Other 2 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 0 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 0 |
| Number of Hardware Interfaces | Wireless 0 |
| Memory Size | 39256 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.00002 ms |
| Number of Digital Configurable I/Os | 0 |
| Degree of Protection | IP20 |
| Rated voltage (UR) | 24 V DC |
| Supply Voltage | 20.4 … 28.8 V DC |
Additional Information
| Product Main Type | PM5630 |
