Official DistributorBy ABB
SKU
MPN
1SAP114100R0270
Weight
0.24 kg

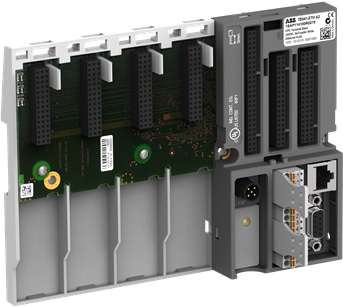

TB541-ETH: AC500 Terminal base. For AC500 V2. 4 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485.
Technical Specifications
Dimensions
| Product Net Weight | 0.24 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 179.5 mm |
| Gross Weight | 0.311 kg |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Width | 189 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | For AC500 V2. 4 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 |
| Communication interface | D-SUB/RJ45/Terminals |
| Input Voltage Type | DC |
| Degree of Protection | IP20 |
| Supply Voltage | 24 V DC |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| Ambient Air Temperature | Storage -40 ... +70 °C |
Additional Information
| Product Main Type | TB541 |
Why Proax for ABB TB541-ETH?
Proax is an authorized distributor of ABB TB541-ETH and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | TB541ETH |
| Pack Size | 1 |
