Name: 3209034
Brand: Phoenix Contact
SKU: PHX3209034
Price: 15.5100 CAD
Availability: BackOrder

All Connectors Terminal blocks Spring-cage connection

Official Distributor

By Phoenix Contact

SKU

MPN

PTIO 1,5/S/3-L-R100K/O-M 120V

Weight

0.007 kg

Series PTIO

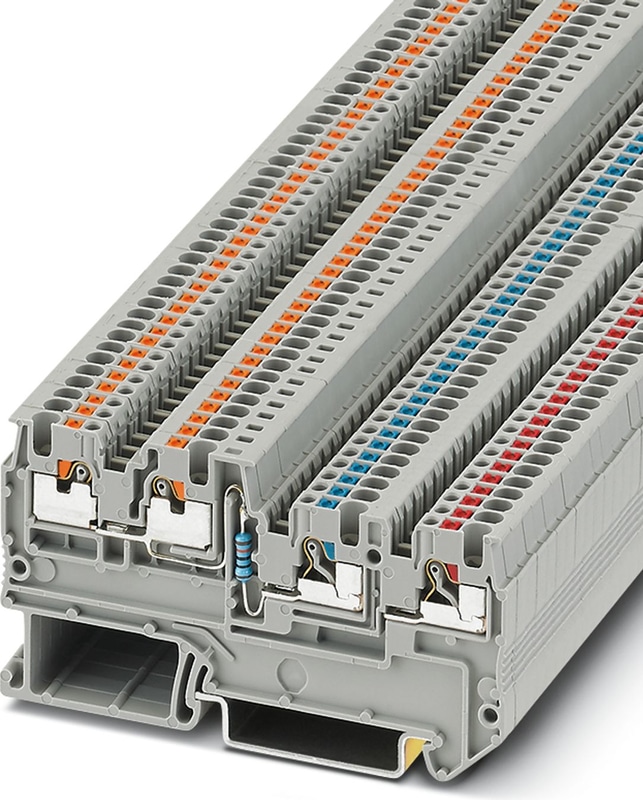

PTIO 1,5/S/3-L-R100K/O-M 120V - Initiator/actuator terminal block

Initiator/actuator terminal block, with 100 kOhm resistor, nom. voltage: 250 V, nominal current: 13.5 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators
Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes
Versions with LED for indicating the switching states
Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
Potential supply is via the PTIO-IN feed-in terminal blocks
For space and time-saving wiring of three-conductor initiators and actuators
The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential

Technical Specifications

Product properties

Number of Connections	4
Number of rows	2
Potentials	3

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	0.4 W

Connection data

Number of connections per level	2
Nominal cross section	1.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A1 / B1
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Cross section AWG	26 ... 16 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]	26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal Current	13.5 A
Maximum Load Current	13.5 A (with 1.5 mm² conductor cross section)
Nominal Voltage	250 V
Nominal cross section	1.5 mm²

Connection cross sections directly pluggable

Conductor cross section rigid	0.25 mm² ... 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 1 mm²

Dimensions

Width	3.5 mm
End cover width	2.2 mm
Height	74.4 mm
Depth on NS 35/7,5	41.5 mm
Depth on NS 35/15	49 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15

Accessories

3244575
D-PTIO 1,5/S/3 - End cover, depth: 33.8 mm, width: 2.2 mm, height: 74.4 mm, color: gray
3208090
PT-IL - Operating decal for the push-in Technology
1200135
Actuation tool - ST-BW 0
0803666
Marker for terminal blocks - UCTU-TM (3,5X7)
3213014
FBS 2-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 2, color: red
3213027
FBS 3-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: red
3213030
FBS 4-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 4, color: red
3213043
FBS 5-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 5, color: red
3213056
FBS 10-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 10, color: red
3213069
FBS 20-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 20, color: red
3000706
FBS 50-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 50, color: red
3213086
FBS 2-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 2, color: blue
3213099
FBS 3-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: blue
3213109
Plug-in bridge, pitch: 3.5 mm, number of positions: 4, color: blue
3213112
FBS 5-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 5, color: blue
3213125
FBS 10-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 10, color: blue
3213138
FBS 20-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 20, color: blue
3000708
FBS 50-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 50, color: blue
3213153
FBS 2-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 2, color: gray
3213167
FBS 3-3,5 GY, Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: gray
3213167
FBS 3-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: gray
3213180
FBS 4-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 4, color: gray
3213183
FBS 5-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 5, color: gray
3213196
FBS 10-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 10, color: gray
3213206
FBS 20-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 20, color: gray
3000707
FBS 50-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 50, color: gray
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201730
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
1201798
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
0201744
Test plugs - MPS-MT
0201663
MPS-IH WH - Insulating sleeve, color: white
0201676
MPS-IH RD - Insulating sleeve, color: red
0201689
MPS-IH BU - Insulating sleeve, color: blue
0201692
MPS-IH YE - Insulating sleeve, color: yellow
0201702
MPS-IH GN - Insulating sleeve, color: green
0201728
MPS-IH GY - Insulating sleeve, color: gray
0201731
MPS-IH BK - Insulating sleeve, color: black
3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
E/NS 35 N - End clamp, width: 9.5 mm, color: gray
3031010
Test plugs - PS-3,5
3031011
DP PS-3,5 - Spacer plate, depth: 33.5 mm, width: 3.5 mm, height: 15.9 mm, number of positions: 1, color: red
3031012
Test plugs - PS-3,5/E
0829392
Zack Marker strip, flat - ZBF 3,5:UNBEDRUCKT
0829486
Marker for terminal blocks - UCT-TMF 3,5
1213144
CRIMPFOX CENTRUS 6S - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 … 6 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1213154
CRIMPFOX CENTRUS 10S - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 ... 10 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1213146
CRIMPFOX CENTRUS 6H - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 … 6 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1213156
CRIMPFOX CENTRUS 10H - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 ... 10 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1212045
CRIMPFOX 10S - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 10 mm2, unlockable pressure lock, lateral entry
1212046
CRIMPFOX 6H - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 6 mm2, unlockable pressure lock, lateral entry
1212719
CRIMPFOX 2,5-M - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 2.5 mm2, lateral entry, trapezoidal crimp
1212720
CRIMPFOX 6-M - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
1212034
CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
1212037
CRIMPFOX 6T - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6 mm2, lateral entry, trapezoidal crimp
1212043
CRIMPFOX 6S-F - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.5 mm2 ... 6 mm2, front entry, square crimp
1212072
CRIMPFOX-M - Basic pliers, for accommodating dies for a wide range of type of contacts
