PTIO 1,5/S/5/U-BK/O-WH

Weight

0.013 kg

This product is Not Cancellable/Not Returnable

Series PTIO

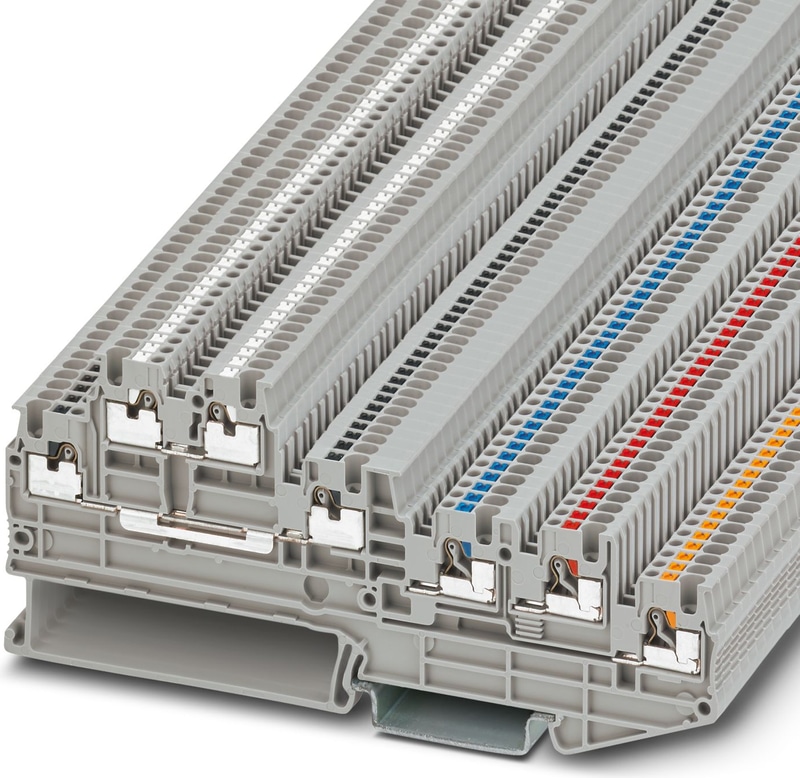

PTIO 1,5/S/5/U-BK/O-WH - Initiator/actuator terminal block

Initiator/actuator terminal block, nom. voltage: 250 V, nominal current: 13.5 A, number of connections: 7, connection method: Push-in connection, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

Technical Specifications

Product properties

Number of Connections	7
Number of rows	5
Potentials	5

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	0.56 W

Connection data

Number of connections per level	2
Nominal cross section	1.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A1 / B1
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Cross section AWG	26 ... 16 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]	26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 1 mm² Using the AI-S 1-8 TQ ferrule, Item No. 1200293, is recommended
Nominal Current	13.5 A
Maximum Load Current	13.5 A
Nominal Voltage	250 V
Nominal cross section	1.5 mm²

Connection cross sections directly pluggable

Conductor cross section rigid	0.25 mm² ... 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 1 mm²

Dimensions

Width	3.5 mm
End cover width	0.8 mm
Height	121.65 mm
Depth	44.6 mm
Depth on NS 35/7,5	52.1 mm
Depth on NS 35/15	59.6 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15

Accessories

3244589
D-PTIO 1,5/S/5 - End cover, depth: 44.6 mm, width: 0.8 mm, height: 121.65 mm, color: gray
3208090
PT-IL - Operating decal for the push-in Technology
1200135
Actuation tool - ST-BW 0
0803666
Marker for terminal blocks - UCTU-TM (3,5X7)
1045987
DS-PTIO 1,5/S - End cover segments, large segment: 32.25 x 13.83 x 0.9, small segment: 22.65 x 11.65 x 0.9, color: gray
3213014
FBS 2-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 2, color: red
3213027
FBS 3-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: red
3213030
FBS 4-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 4, color: red
3213043
FBS 5-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 5, color: red
3213056
FBS 10-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 10, color: red
3213069
FBS 20-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 20, color: red
3000706
FBS 50-3,5 - Plug-in bridge, pitch: 3.5 mm, number of positions: 50, color: red
3213086
FBS 2-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 2, color: blue
3213099
FBS 3-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: blue
3213109
Plug-in bridge, pitch: 3.5 mm, number of positions: 4, color: blue
3213112
FBS 5-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 5, color: blue
3213125
FBS 10-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 10, color: blue
3213138
FBS 20-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 20, color: blue
3000708
FBS 50-3,5 BU - Plug-in bridge, pitch: 3.5 mm, number of positions: 50, color: blue
3213153
FBS 2-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 2, color: gray
3213167
FBS 3-3,5 GY, Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: gray
3213167
FBS 3-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 3, color: gray
3213180
FBS 4-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 4, color: gray
3213183
FBS 5-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 5, color: gray
3213196
FBS 10-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 10, color: gray
3213206
FBS 20-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 20, color: gray
3000707
FBS 50-3,5 GY - Plug-in bridge, pitch: 3.5 mm, number of positions: 50, color: gray
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201730
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
1201798
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
0201744
Test plugs - MPS-MT
0201663
MPS-IH WH - Insulating sleeve, color: white
0201676
MPS-IH RD - Insulating sleeve, color: red
0201689
MPS-IH BU - Insulating sleeve, color: blue
0201692
MPS-IH YE - Insulating sleeve, color: yellow
0201702
MPS-IH GN - Insulating sleeve, color: green
0201728
MPS-IH GY - Insulating sleeve, color: gray
0201731
MPS-IH BK - Insulating sleeve, color: black
3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
E/NS 35 N - End clamp, width: 9.5 mm, color: gray
3031010
Test plugs - PS-3,5
3031011
DP PS-3,5 - Spacer plate, depth: 33.5 mm, width: 3.5 mm, height: 15.9 mm, number of positions: 1, color: red
3031012
Test plugs - PS-3,5/E
0829392
Zack Marker strip, flat - ZBF 3,5:UNBEDRUCKT
0829486
Marker for terminal blocks - UCT-TMF 3,5
1213144
CRIMPFOX CENTRUS 6S - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 … 6 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1213154
CRIMPFOX CENTRUS 10S - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 ... 10 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1213146
CRIMPFOX CENTRUS 6H - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 … 6 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1213156
CRIMPFOX CENTRUS 10H - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 ... 10 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
1212045
CRIMPFOX 10S - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 10 mm2, unlockable pressure lock, lateral entry
1212046
CRIMPFOX 6H - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 6 mm2, unlockable pressure lock, lateral entry
1212719
CRIMPFOX 2,5-M - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 2.5 mm2, lateral entry, trapezoidal crimp
1212720
CRIMPFOX 6-M - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
1212034
CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
1212037
CRIMPFOX 6T - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6 mm2, lateral entry, trapezoidal crimp
1212043
CRIMPFOX 6S-F - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.5 mm2 ... 6 mm2, front entry, square crimp
1212072
CRIMPFOX-M - Basic pliers, for accommodating dies for a wide range of type of contacts
0829414
Zack marker strip - ZB 3,5:UNBEDRUCKT
0829484
Marker for terminal blocks - UCT-TM 3,5
