1636392
Official DistributorSKU
PHX1636392
MPN
HC-K 6/ 6 ESTS
Weight
0.284 kg
Series HC-K

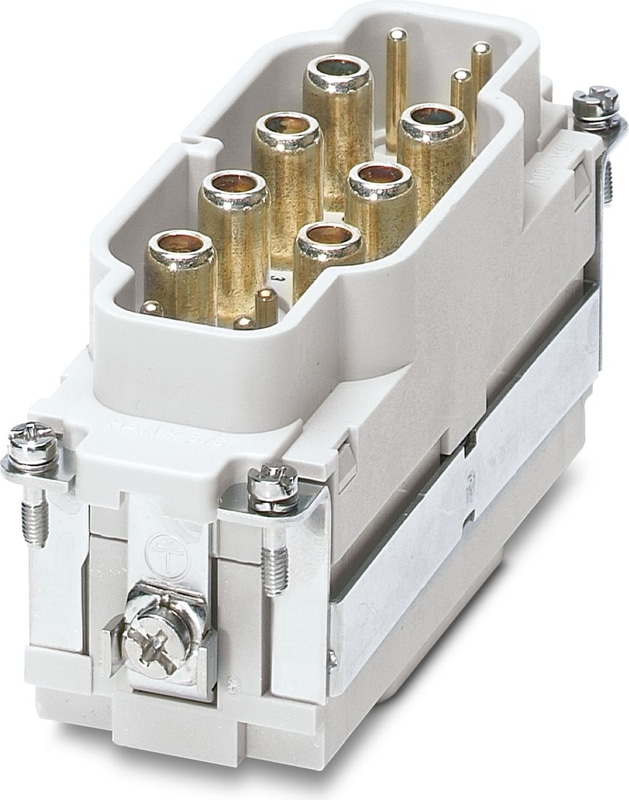

HC-K 6/ 6 ESTS - Contact insert
Contact insert, number of positions: 6+6+PE, size: B24, power contacts: 6, control contacts: 6, Pin, Axial screw connection, 690 V, 100 A, 16 mm2 ... 35 mm2
Technical Specifications
Notes
| General | For HEAVYCON ADVANCE and HEAVYCON housing of type B24, with third-party logo |
| General | Connectors may be operated only when there is no load/voltage. |
Mounting
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Product properties
| Series | HC-K |
| Type | B24 |
| Type | B48 |
| Number of Positions | 12 |
| Connection profile | 6+6+PE |
| Contact numbering | 1 - 6 (power contacts) |
| Contact numbering | 1 - 6 (control contacts) |
| No. of power contacts | 6 |
| No. of control contacts | 6 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 34 mm |
| Height | 47.8 mm |
| Length | 111 mm |
| Drill hole distance, horizontal | 104 mm |
| Drill hole distance, vertical | 27 mm |
Connection technology
| Connection technology | Axial screw connection (power contacts) |
| Connection technology | Screw connection (control contacts) |
Conductor connection
| Conductor Cross Section | 16 mm² ... 35 mm² (power contacts) |
| Conductor Cross Section | 0.2 mm² ... 2.5 mm² (control contacts) |
| Connection cross section AWG | 5 ... 2 (power contacts) |
| Connection cross section AWG | 24 ... 13 (control contacts) |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Tightening torque | 6 Nm (Power contacts for 16 mm²) |
| Tightening torque | 7 Nm (Power contacts for 25 mm²) |
| Tightening torque | 0.8 Nm (control contacts) |
| Tightening torque | 8 Nm (Power contacts for 35 mm²) |
| Stripping length of the individual wire | 13 mm ±1 mm (Power) |
| Stripping length of the individual wire | 7.5 mm (Signal) |
Electrical properties
| Rated voltage (III/3) | 690 V (power contacts) |
| Rated voltage (III/3) | 400 V (control contacts) |
| Rated surge voltage | 8 kV (power contacts) |
| Rated surge voltage | 6 kV (control contacts) |
| Rated current | 100 A (power contacts) |
| Rated current | 16 A (control contacts) |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact Material | Cu alloy |
| Contact carrier material | PC |
| Material of contact surface, power contact | Ag |
| Material of contact surface, control contact | Ag |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Accessories
