1580537
Official DistributorSKU
PHX1580537
MPN
HC-K 6/0-EBUS
Weight
0.148 kg
This product is Not Cancellable/Not Returnable
Series HC-K

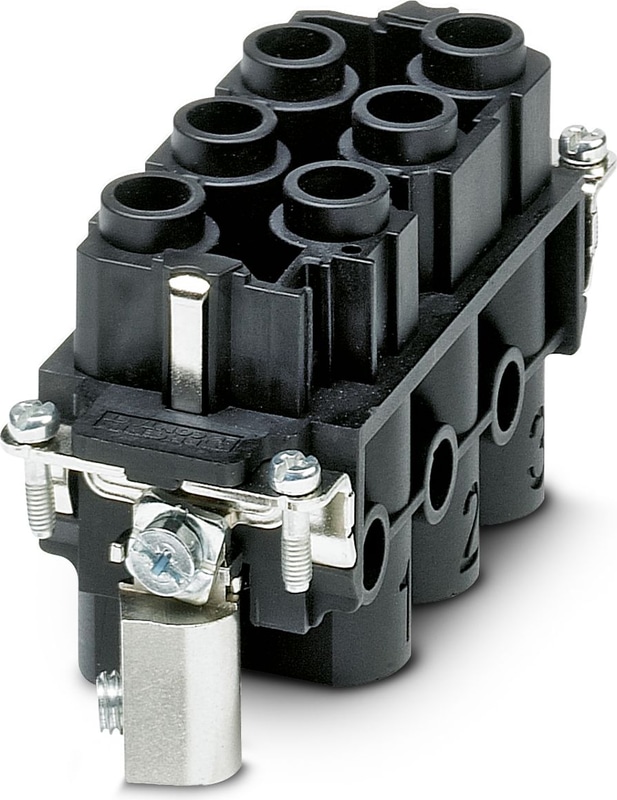

HC-K 6/0-EBUS - Contact insert
Contact insert, number of positions: 6+PE, size: B16, power contacts: 6, control contacts: 0, Socket, Screw connection, 1000 V, 80 A, 6 mm2 ... 16 mm2, application: Power
Technical Specifications
Notes
| General | For HEAVYCON ADVANCE and HEAVYCON housing type B16/B32; screw head shape of connection screws: Allen screws, wrench size 3 mm. |
| General | Connectors may be operated only when there is no load/voltage. |
| General | Flexible conductors may be used without ferrules as long as they comply with IEC 60228 Class 1 ... 5. |
Mounting
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Assembly instructions | For housing type B16. |
Product properties
| Series | HC-K |
| Application | Power |
| Type | B16 |
| Type | B32 |
| Number of Positions | 6 |
| Connection profile | 6+PE |
| Contact numbering | 1 - 6 |
| No. of power contacts | 6 |
| No. of control contacts | 0 |
| Contact material type | turned |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 33.9 mm |
| Height | 49.7 mm |
| Length | 84 mm |
| Drill hole distance, horizontal | 77.4 mm |
Mechanical characteristics
| Contact diameter | 6 mm |
Connection technology
| Connection technology | Screw connection (without wire protection) |
| Connection in acc. with standard | IEC / EN |
Conductor connection
| Conductor Cross Section | 6 mm² ... 16 mm² (without ferrule) |
| Conductor Cross Section | 2.5 mm² ... 16 mm² (with ferrule) |
| Connection cross section AWG | 10 ... 6 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Tightening torque | 1.8 Nm |
| Stripping length of the individual wire | 15 mm |
Electrical properties
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage | 8 kV |
| Rated surge voltage | 8 kV |
| Rated current | 80 A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Material of contact surface, power contact | Ag |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C (including heating up of contacts) |
Standards and Regulations
| Constructional and testing regulations | DIN VDE 0627/86 |
| Constructional and testing regulations | DIN VDE 0110/02.79 |
| Constructional and testing regulations | DIN VDE 0110-1/04.97 |
| Constructional and testing regulations | IEC 60664-1, DIN IEC 60512 |
| Tests | DIN VDE 0627/86 |
| Tests | DIN VDE 0110/02.79 |
| Tests | DIN VDE 0110-1/04.97 |
| Tests | IEC 60664-1, DIN IEC 60512 |
Testing
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Accessories
HC-CB - Coding pin, prevents mismating of up to six connectors with an identical number of positions
