Name: 1636321
Brand: Phoenix Contact
SKU: PHX1636321
Price: 59.0100 CAD
Availability: BackOrder

All Connectors Heavy-duty connectors

Official Distributor

By Phoenix Contact

SKU

MPN

HC-K 8/24-EBUC

Weight

0.06 kg

This product is Not Cancellable/Not Returnable

Series HC-K

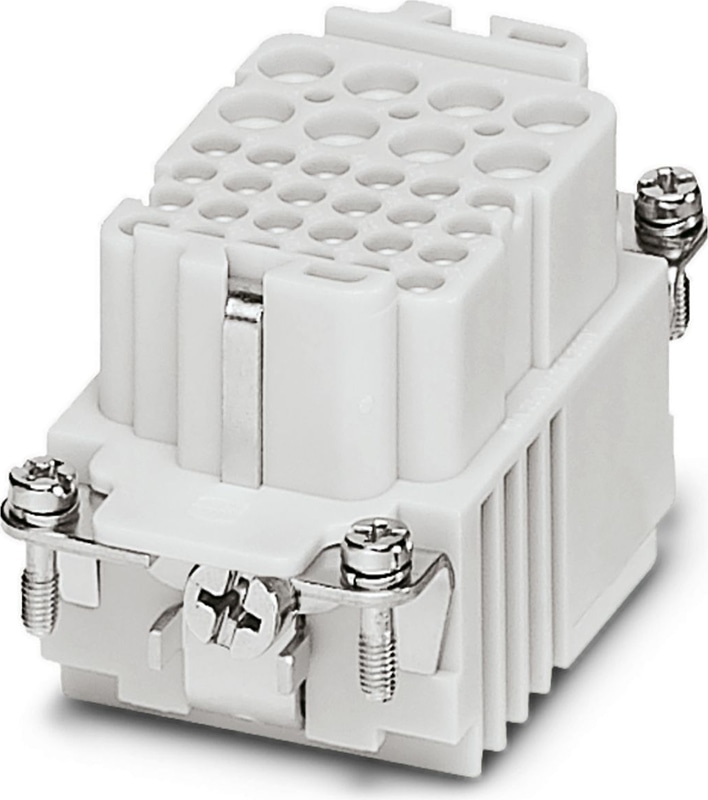

HC-K 8/24-EBUC - Contact insert

Contact insert, number of positions: 8+24+PE, size: B10, power contacts: 8, control contacts: 24, Socket, Crimp connection, 230 V, 16 A, 0.5 mm2 ... 4 mm2, application: Power/signal

Shock and vibration-resistant in accordance with DIN EN 61373

Documents

Technical Document

Technical Specifications

Notes

General	For housing HC-B10, power contacts: CK 2,5-ED, control contacts: CK 1,6-ED (crimp contacts not included in scope of delivery)
General	Connectors may be operated only when there is no load/voltage.

Mounting

Assembly note

To ensure correct use, installation in housing with IP54 protection or better is required

Product properties

Series	HC-K
Application	Power/signal
Type	B10
Number of Positions	32
Connection profile	8+24+PE
Contact numbering	1 - 8 (power contacts)
Contact numbering	1 - 24 (control contacts)
No. of power contacts	8
No. of control contacts	24
Contact material type	turned

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Dimensions

Width	34 mm
Height	38 mm
Length	64 mm
Drill hole distance, horizontal	57 mm

Mechanical characteristics

Contact diameter

2.5 mm

Connection technology

Connection technology	Crimp connection (power contacts)
Connection technology	Crimp connection (Signal contacts)
Connection in acc. with standard	IEC / EN

Conductor connection

Conductor Cross Section	0.5 mm² ... 4 mm² (power contacts)
Conductor Cross Section	0.14 mm² ... 2.5 mm² (control contacts)
Connection cross section AWG	20 ... 12 (power contacts)
Connection cross section AWG	26 ... 14 (control contacts)
Tightening torque	0.8 Nm ... 1.2 Nm (PE connection)
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire	7.5 mm
Stripping length of the individual wire	8 mm (0.14 mm² ... 1.5 mm²)
Stripping length of the individual wire	6 mm (2.5 mm²)

Electrical properties

Rated voltage (III/3)	230 V (Power contacts wire-ground)
Rated voltage (III/3)	160 V
Rated voltage (III/3)	400 V (Power contacts wire-wire)
Rated voltage for power contacts	230/400 V
Rated surge voltage	4 kV (power contacts)
Rated surge voltage	2.5 kV (control contacts)
Rated current	16 A (power contacts)
Rated current	10 A (control contacts)

Mechanical data

Insertion/withdrawal cycles

≥ 500

Material specifications

Flammability rating according to UL 94	V0
Contact Material	Cu alloy
Contact carrier material	PC
Material of contact surface, power contact	Ag (alternat. Au)
Material of contact surface, control contact	Ag (alternatively Au)
Standards/regulations	PC: Fire protection in rail vehicles - requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
Standards/regulations	PC: Fire protection in rail vehicles - requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Ambient conditions

Ambient Temperature (Operation)

-40 °C ... 125 °C

Testing

Standards/regulations	PC: Fire protection in rail vehicles - requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
Standards/regulations	PC: Fire protection in rail vehicles - requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Accessories

1885004
CK1,6-ED-BU-POF - POF fiber optic socket contact, turned, for contact carriers (HC-DD...I-CT.../ HC-M-12-CT-F.../ HC-M-17-CT-F...) of CK1,6-ED... contacts
1645888
CK1,6-ED-BB - Dummy socket for contact carrier with turned CK 1,6-ED.. female contacts
1072069
Contact removal tool - UNIFOX RT-CK 1.6
1212113
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
1676857
HC-CST - Coding peg for coding up to 16 connectors
1676860
Coding socket for coding up to 16 connectors
1772722
HC-CB - Coding pin, prevents mismating of up to six connectors with an identical number of positions
1663394
CK1,6-ED-0,37BU AG - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 26 ... 22
1663404
CK1,6-ED-0,50BU AG - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1663417
CK1,6-ED-0,75BU AG - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1663420
CK1,6-ED-1,00BU AG - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1 mm2 ... 1 mm2, AWG 18
1663433
CK1,6-ED-1,50BU AG - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1663446
CK1,6-ED-2,50BU AG - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1674969
CK1,6-ED-0,37BU AU - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 24 ... 22
1674480
CK1,6-ED-0,50BU AU - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1672440
CK1,6-ED-0,75BU AU - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1674943
CK1,6-ED-1,00BU AU - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1 mm2 ... 1 mm2, AWG 18
1674930
CK1,6-ED-1,50BU AU - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1674985
CK1,6-ED-2,50BU AU - Crimp contact, contact diameter: 1.6 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1663640
CK2,5-ED-0,50BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1663653
CK2,5-ED-0,75BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1663666
CK2,5-ED-1,00BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 1 mm2, AWG 18
1663679
Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1663682
CK2,5-ED-2,50BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1663695
CK2,5-ED-3,00BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 3 mm2 ... 3 mm2, AWG 12
1663705
CK2,5-ED-4,00BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
1585647
CK2,5-ED-0,37BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 22 ... 26
1674859
CK2,5-ED-0,50BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1674833
CK2,5-ED-1,00BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.75 mm2 ... 1 mm2, AWG 18
1674820
CK2,5-ED-1,50BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1674862
CK2,5-ED-2,50BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1674846
CK2,5-ED-4,00BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
