HC-ADV-B10-HLWH-BLANK-ELC-AL
Weight
0.238 kg
Series HC-ADV-B

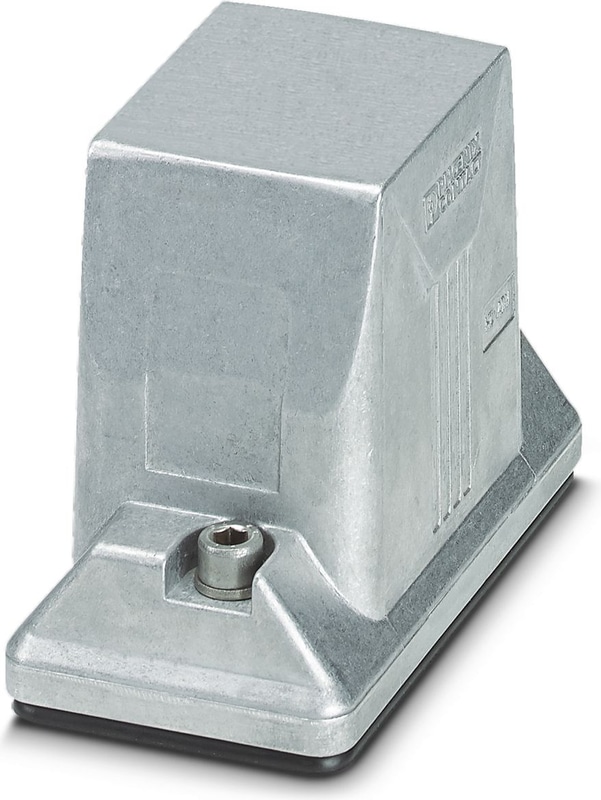

HC-ADV-B10-HLWH-BLANK-ELC-AL - Housing
Sleeve housing B10, with screw locking, material: Die-cast aluminum, salt water resistant, variable, height: 74 mm, cable gland: none, Offshore/EMC, Without thread opening for screw connection, conductive seal (EMC properties)
Technical Specifications
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Housing type | Sleeve housing |
| Product family | HC-ADV |
| Application | Offshore/EMC |
| Type | B10 |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Shielded | yes |
| Cable outlet | variable |
| Pg screw connection | none |
Connection data
| Tightening torque | 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
Dimensions
| Width | 57 mm |
| Height | 74 mm |
| Length | 105 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | Stainless steel |
| Impact strength | IK09 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (0.2 bar/24 h) |
| Degree of Protection | IP69 (ISO 20653:2013-02) |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| Enclosure rating (NEMA) | 4X (UL 50e) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK09 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mechanical data
| Locking Type | Screw |
Mounting
| Assembly instructions | In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
Accessories
HC-B-AF-SET - Panel-mount flange for HEAVYCON ADVANCE housing, set consisting of: 2 panel-mount flanges with 4 self-tapping screws (M4, Torx®) and 4 fan-type washers
