SKU
MPN
HC-ADV-B10-HLWH-1STM25-EMC-AL
Weight
0.23 kg
This product is Not Cancellable/Not Returnable
Series HC-ADV-B

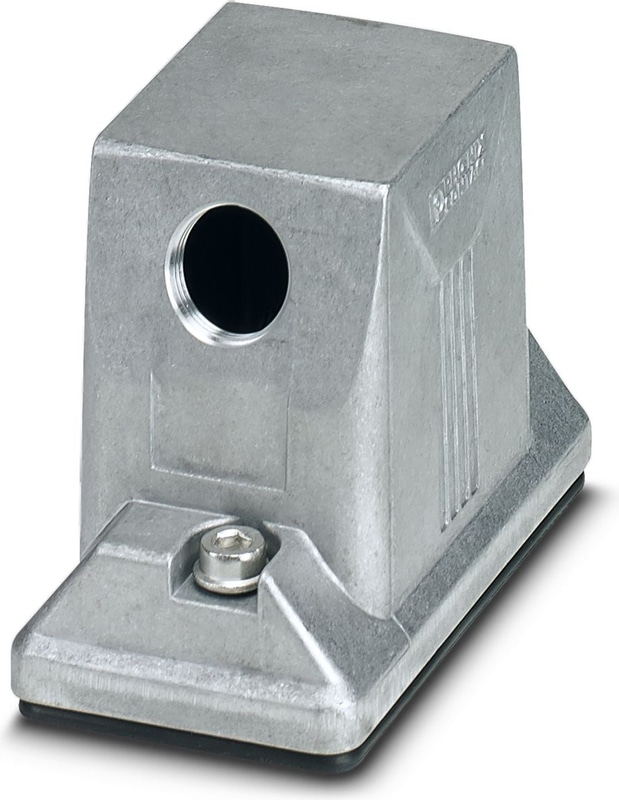

HC-ADV-B10-HLWH-1STM25-EMC-AL - Housing

HEAVYCON ADVANCE sleeve housing, B10, with stainless steel screw locking (Allen screw), salt-water-resistant aluminum, height 74 mm, with 1x M25 thread, lateral cable outlet, without surface; conductive seal (EMC properties)

Technical Specifications

Notes

GeneralFor contact inserts HC-B10, BB18, DD42, M, K8/24

Product properties

Housing typeSleeve housing
Product familyHC-ADV
ApplicationOffshore/EMC
TypeB10
No. of cable outlets1
Type of the screw connection1x M25
Fixing screwsM6 (screw head: 5 mm Allen screw)
Cable outletlateral
Pg screw connectionnone

Connection data

Tightening torque3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing)

Dimensions

Width57 mm
Height74 mm
Length105 mm

Installation dimensions

Width of the assembly cutout35 mm
Length of the assembly cutout65 mm

Material specifications

Seal materialNBR, conductive
Housing MaterialDie-cast aluminum, salt water resistant
Housing surface materialuncoated
Locking latch materialStainless steel
Impact strengthIK09

Ambient conditions

Degree of ProtectionIP66
Degree of ProtectionIP68 (0.2 bar/24 h)
Degree of ProtectionIP69 (ISO 20653:2013-02)
Enclosure rating (NEMA)4 (UL 50e)
Enclosure rating (NEMA)4X (UL 50e)
Enclosure rating (NEMA)12 (UL 50e)
Impact strengthIK09
Ambient Temperature (Operation)-40 °C ... 125 °C

Mechanical data

Type of the screw connection1x M25
Locking TypeScrew

Mounting

Fixing screwsM6 (screw head: 5 mm Allen screw)
