HC-ADV-B10-HLWH-1TTM25-EMC-AL
Weight
0.231 kg
Series HC-ADV-B
HC-ADV-B10-HLWH-1TTM25-EMC-AL - Housing

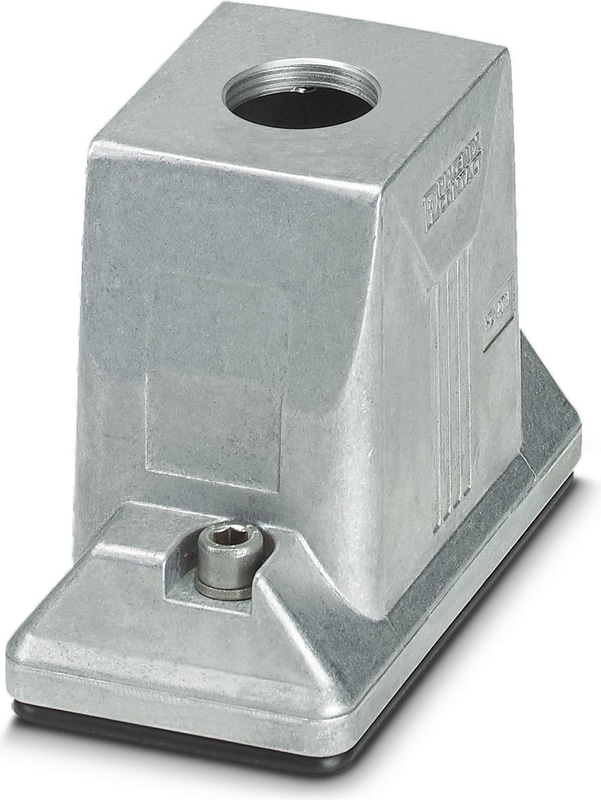

HEAVYCON ADVANCE sleeve housing, B10, with stainless steel screw locking (Allen screw), salt-water-resistant aluminum, height 74 mm, with 1x M25 thread, straight cable outlet, without surface; conductive seal (EMC properties)
Technical Specifications
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Housing type | Sleeve housing |
| Product family | HC-ADV |
| Application | Offshore/EMC |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Cable outlet | straight |
| Pg screw connection | none |
Connection data
| Tightening torque | 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
Dimensions
| Width | 57 mm |
| Height | 74 mm |
| Length | 105 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | Stainless steel |
| Impact strength | IK09 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (0.2 bar/24 h) |
| Degree of Protection | IP69 (ISO 20653:2013-02) |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| Enclosure rating (NEMA) | 4X (UL 50e) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK09 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mechanical data
| Type of the screw connection | 1x M25 |
| Locking Type | Screw |
Mounting
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
Accessories
HC-B-AF-SET - Panel-mount flange for HEAVYCON ADVANCE housing, set consisting of: 2 panel-mount flanges with 4 self-tapping screws (M4, Torx®) and 4 fan-type washers
G-INS-M25-M68N-NNES-S - Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 11 mm ... 17 mm, shielding: no, connecting thread: M25 x 1.5, color: silver, with O-ring
Metal screw connection up to 5 bar, thread length: 7 mm, cable diameter: 14 - 21 mm, WAF 34, screw connection: M25
HC-M-KV-M25(1ASI) - Metal screw connection for an AS-Interface flat-ribbon conductor, thread type M25
HC-M-KV-M25(1X10/1X11), Special cable screw connection M25, brass nickel-plated, grommet with 10 mm and 11 mm holes
