Official DistributorSKU
MPN
HC-B 10-TMS-SD-IP66
Weight
0.057 kg
This product is Not Cancellable/Not Returnable
Series HC-B

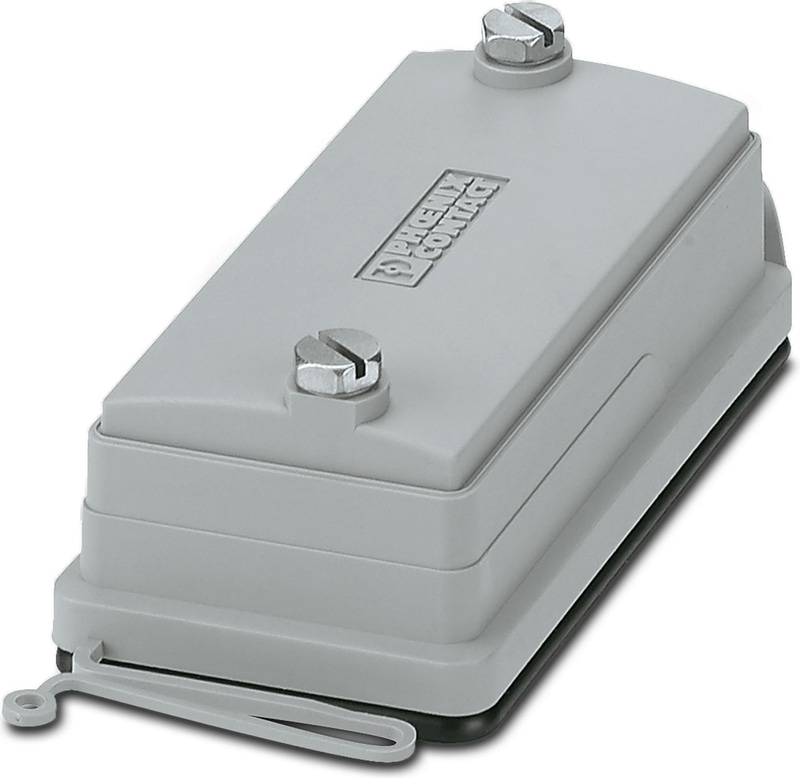

HC-B 10-TMS-SD-IP66 - Protective cover
HEAVYCON ADVANCE, IP66, B10 protective cover for panel mounting side, with screw locking, with retaining cord, diameter of retaining cord eyelet: 3 mm
HC-B
The Phoenix Contact HC-B Series comprises heavy-duty rectangular connectors engineered for industrial applications requiring robust and reliable power and signal transmission. These connectors are designed to withstand harsh environmental conditions, ensuring secure and efficient connectivity in demanding settings.
Key Features:
- ✅ Variety of Sizes: The HC-B Series offers multiple sizes, including B6, B10, B16, and B24, accommodating different space and connection requirements.
- ✅ High Number of Positions: Depending on the size, these connectors provide a range of contact positions, such as 6+PE, 10+PE, 16+PE, and 24+PE, facilitating versatile wiring configurations.
- ✅ Robust Electrical Specifications: Rated for voltages up to 500 V and currents up to 16 A, the HC-B connectors are suitable for power-intensive applications.
- ✅ Durable Construction: Featuring housings made from high-quality materials, these connectors offer excellent resistance to mechanical stress and environmental factors.
- ✅ Secure Connection Technologies: The series includes various connection methods, such as screw and push-in connections, ensuring reliable and maintenance-friendly installations.
Technical Specifications
Product properties
| Housing type | Protective cover |
| Type | B10 |
| Type | HC-ADVANCE protective cover |
| Retaining cord present | yes |
| Seal present | yes |
Dimensions
| Width | 55 mm |
| Height | 39.3 mm |
| Length | 102.5 mm |
| Diameter | 3.5 mm |
Material specifications
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material, protective cover | PA |
| Locking latch material | Stainless steel |
| Material for screw connection | Stainless steel |
Mechanical data
| Locking Type | Screw |
Ambient conditions
| Degree of Protection | IP66 |
| Ambient Temperature (Operation) | -20 °C ... 100 °C |
Mounting
| Assembly instructions | Tightening torque of locking screw: 3 Nm |
Why Proax for Phoenix Contact 1411504?
Proax is an authorized distributor of Phoenix Contact 1411504 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
