Official DistributorSKU
MPN
HC-B 10-TMS-100/O1STM32S-EUA
Weight
0.354 kg
Series HC-B

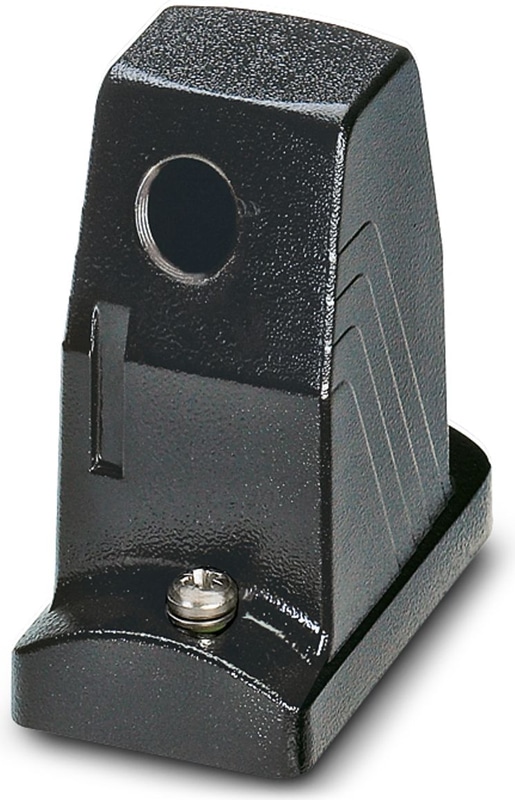

HC-B 10-TMS-100/O1STM32S-EUA - Housing
HEAVYCON ADVANCE for increased environmental requirements, sleeve housing B10, with screw locking, height 100 mm, with 1xM32 thread, lateral cable outlet
HC-B
The Phoenix Contact HC-B Series comprises heavy-duty rectangular connectors engineered for industrial applications requiring robust and reliable power and signal transmission. These connectors are designed to withstand harsh environmental conditions, ensuring secure and efficient connectivity in demanding settings.
Key Features:
- ✅ Variety of Sizes: The HC-B Series offers multiple sizes, including B6, B10, B16, and B24, accommodating different space and connection requirements.
- ✅ High Number of Positions: Depending on the size, these connectors provide a range of contact positions, such as 6+PE, 10+PE, 16+PE, and 24+PE, facilitating versatile wiring configurations.
- ✅ Robust Electrical Specifications: Rated for voltages up to 500 V and currents up to 16 A, the HC-B connectors are suitable for power-intensive applications.
- ✅ Durable Construction: Featuring housings made from high-quality materials, these connectors offer excellent resistance to mechanical stress and environmental factors.
- ✅ Secure Connection Technologies: The series includes various connection methods, such as screw and push-in connections, ensuring reliable and maintenance-friendly installations.
Technical Specifications
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Housing type | Sleeve housing |
| Application | increased environmental requirements |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Fixing screws | M6 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Connection data
| Tightening torque | 3 Nm (Locking screw) |
Dimensions
| Width | 57 mm |
| Height | 100 mm |
| Length | 105 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Seal material | Viton |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | Powder-coated, black |
| Locking latch material | Stainless steel |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (0.2 bar/24 h) |
| Degree of Protection | IP69K |
| Enclosure rating (NEMA) | 4 (NEMA 250) |
| Enclosure rating (NEMA) | 4X (NEMA 250) |
| Enclosure rating (NEMA) | 6P (NEMA 250) |
| Enclosure rating (NEMA) | 12 (NEMA 250) |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mechanical data
| Type of the screw connection | 1x M32 |
| Locking Type | Screw |
Mounting
| Assembly instructions | In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
| Assembly instructions | Tightening torque of locking screw 3 Nm. |
| Fixing screws | M6 |
Why Proax for Phoenix Contact 1690150?
Proax is an authorized distributor of Phoenix Contact 1690150 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
